The Omron E2B-M12LS04-M1-B2 is a shielded cylindrical inductive proximity sensor in a 12 mm diameter brass housing. It detects ferrous and non-ferrous metal targets at a 4 mm sensing distance and provides a PNP normally closed output through an M12 connector. The shielded construction allows flush mounting in metal panels with minimal derating. The normally closed output (output ON when target is absent) suits fail-safe applications where a broken wire causes a safe OFF signal. The long body profile fits standard 12 mm mounting holes.

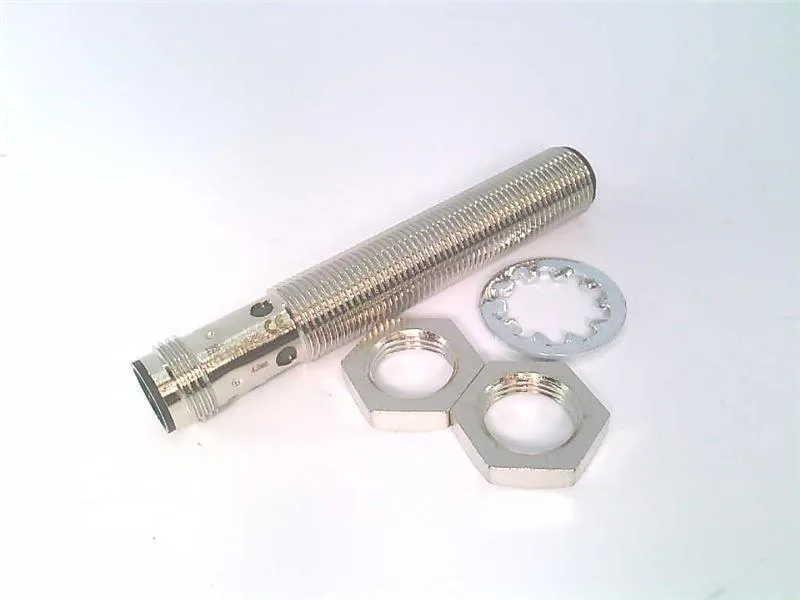

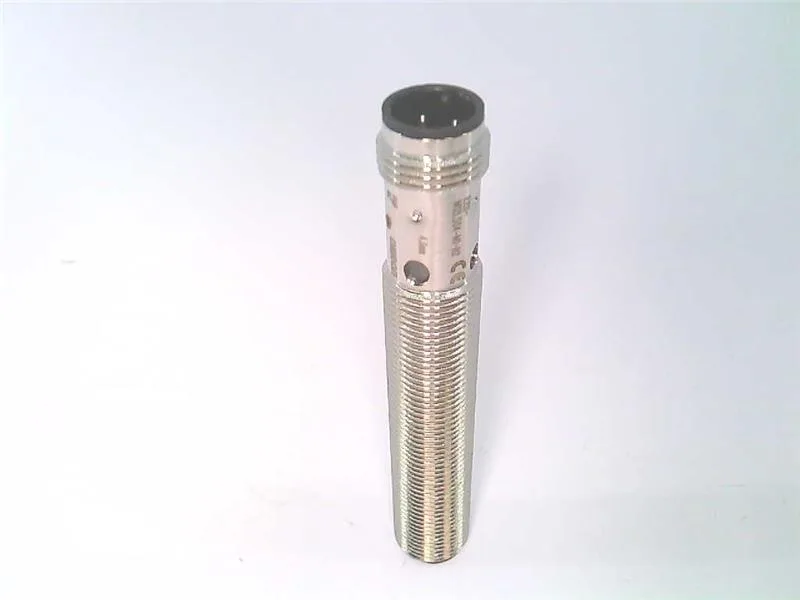

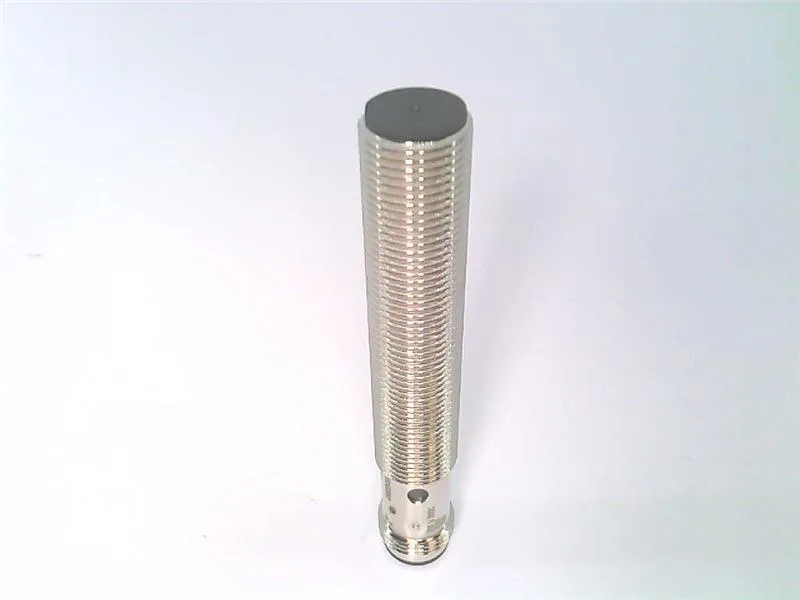

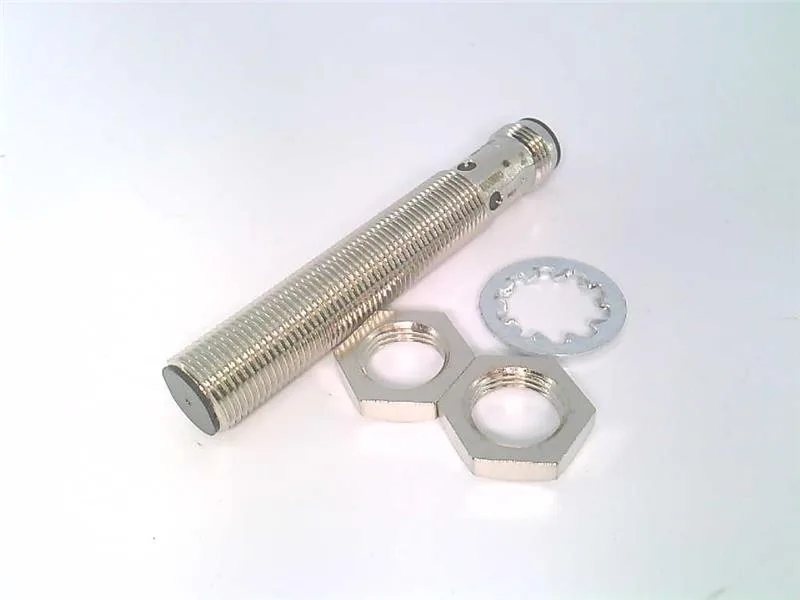

Omron E2B-M12LS04-M1-B2 Proximity Sensor, Shielded, PNP NC
MPNE2B-M12LS04-M1-B2
Omron E2B-M12LS04-M1-B2, cylindrical inductive proximity sensor, shielded, PNP output, normally closed, 4mm sensing distance, M12 connector.
$8.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 4mm sensing distance |
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
| Parameter | Value |
|---|---|
| Shield | Shielded |
| Weight | 0.09 kgs |
| Housing size | 12 mm diameter |
| Barrel length | Long body |
| Connection type | M12 connector |
| Power source and output | PNP |
| Housing shape and material | Cylindrical, metric thread, brass |
Product details
Frequently asked questions
What is the sensing distance and output type?
The sensing distance is 4 mm, and the output is PNP normally closed (NO when target is absent).
What is the connection type and shielding?
It has an M12 connector and is fully shielded for flush mounting.
Can the E2B-M12LS04-M1-B2 replace the E2C-EDA11 2M in an existing panel?
No, the E2C-EDA11 2M is an amplifier unit with cable, NPN output, and different wiring; it is not a direct mechanical or electrical substitute.
MPN
E2B-M12LS04-M1-B2
