Omron E2B-M12LS04-WP-B2 2M — Proximity Sensors

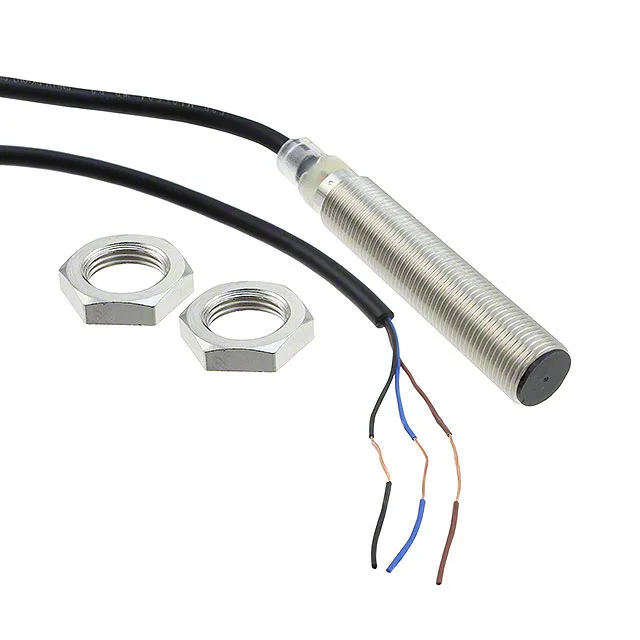

Omron E2B-M12LS04-WP-B2 2M Inductive Prox, PNP-NC, 4mm, M12

MPNE2B-M12LS04-WP-B2 2M

Omron E2B series, inductive proximity sensor, M12 shielded, PNP-NC 3-wire, 4mm sensing distance, 10–30 VDC, IP67, 1 kHz, cable leads.

Omron E2B-M12LS04-WP-B2 2M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2B-M12LS04-WP-B2 2M — Identification
ParameterValue
SeriesE2B
E2B-M12LS04-WP-B2 2M — Sensing
ParameterValue
Sensing distance0.157" (4mm)
ShieldingShielded
E2B-M12LS04-WP-B2 2M — Environmental
ParameterValue
Operating temperature range-25°C ~ 70°C
E2B-M12LS04-WP-B2 2M — Other specifications
ParameterValue
CaseCylinder, Threaded - M12
IndicatorLED
Output signalPNP-NC, 3-Wire
Sensor typeInductive
Material - bodyNickel-Plated Brass
Supply voltage10V ~ 30V
Termination styleCable Leads
IP ratingIP67
Response frequency1kHz

Product details

Omron's E2B-M12LS04-WP-B2 2M is an M12 shielded inductive proximity sensor with a PNP normally closed output — the NC variant is less common than NO, so verify your PLC input logic before installing. Sensing distance is 4 mm, standard for a shielded M12. The shield allows flush mounting in metal without derating the range. Response frequency is 1 kHz, fast enough for moderate counting or positioning on a conveyor. Keep one in the cabinet as a critical spare for any line using PNP-NC inductive sensors in a 10–30 VDC loop.

Frequently asked questions

What series does this belong to?

This sensor is part of Omron's E2B series.

MPN
E2B-M12LS04-WP-B2 2M
