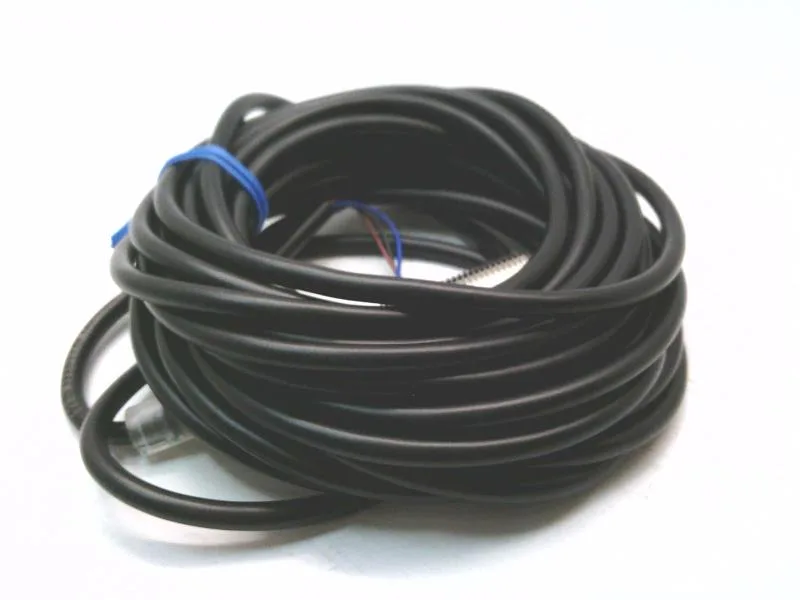

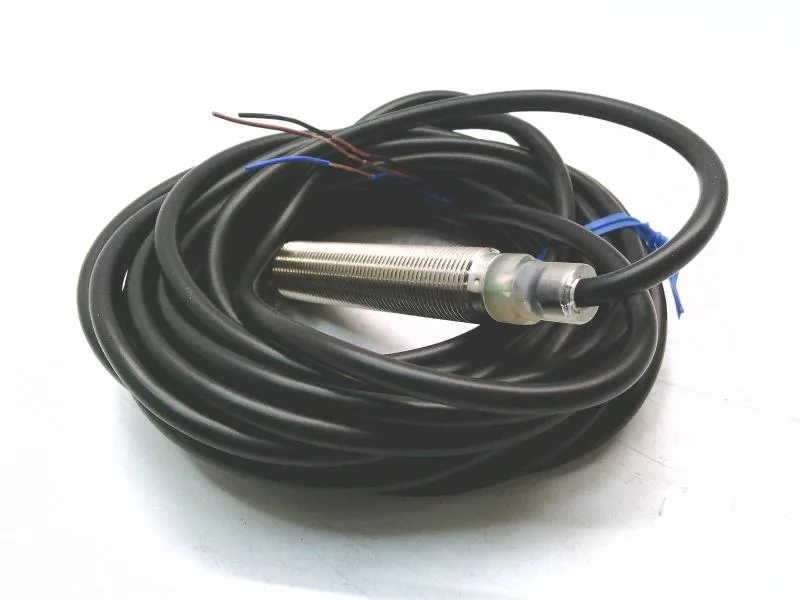

Omron E2B-M12LS04-WP-C1 5M is a shielded M12 inductive proximity sensor with a 4 mm sensing distance, NPN normally open output, and a 5 meter PVC cable. It's a workhorse for detecting ferrous targets on rotating equipment out here in the grease — the threaded brass barrel and pre-wired cable make it a quick swap on a conveyor or pump motor stand.
Omron E2B-M12LS04-WP-C1 5M Inductive Proximity, Shielded NPN
MPNE2B-M12LS04-WP-C1 5M
Omron E2B-M12LS04-WP-C1 5M inductive proximity sensor, shielded, NPN normally open, 4 mm sensing distance, 5 m PVC cable.
$19.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 4mm sensing distance |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 5 meter cable |
| Parameter | Value |
|---|---|
| Shield | Shielded |
| Weight | 0.45 kgs |
| Housing size | 12 mm diameter |
| Barrel length | Long body |
| Connection type | Pre-wired, PVC |
| Power source and output | NPN |
| Housing shape and material | Cylindrical, metric thread, brass |
Product details
Frequently asked questions
Can I substitute E2K-X8MY2 in a panel designed for this sensor?
No — the E2K-X8MY2 is an unshielded M18 AC two-wire sensor with NC output and a 2 m cable. This E2B sensor is shielded M12, NPN NO, DC-powered, and has a 5 m cable. Wiring, voltage class, and mounting are all different.
MPN
E2B-M12LS04-WP-C1 5M
