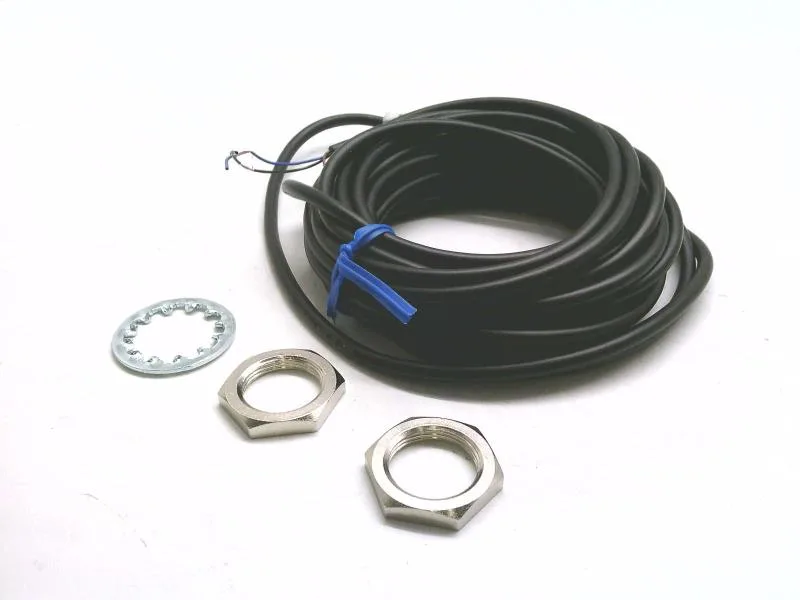

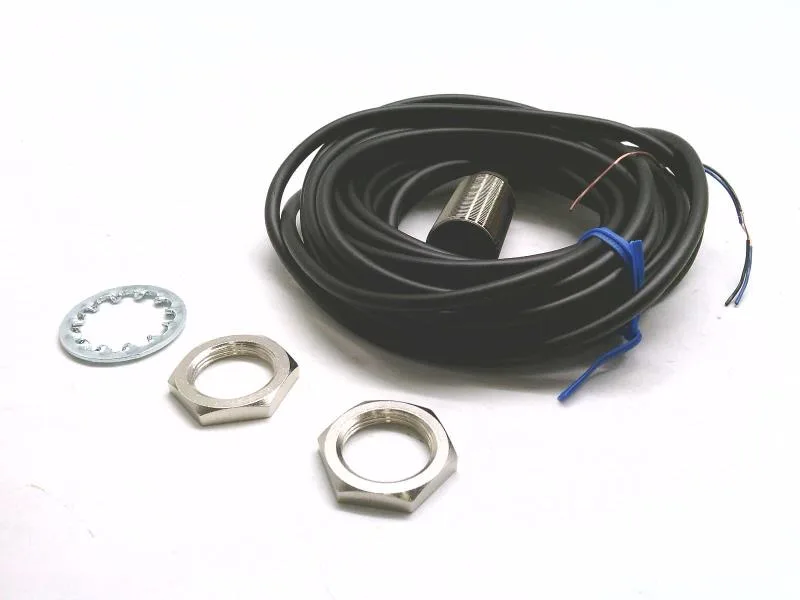

Omron E2B-M18KS05-WP-B1 5M is an M18 cylindrical shielded inductive proximity sensor with a 5mm sensing distance, PNP normally open output, and a 5 meter PVC cable. The brass barrel with metric thread makes it a standard pick for machine-mount applications where you need to detect ferrous targets through non-ferrous surroundings.
Omron E2B-M18KS05-WP-B1 5M Proximity Sensor, Shielded, PNP,
MPNE2B-M18KS05-WP-B1 5M
Omron E2B series, M18 shielded inductive proximity sensor, PNP NO output, 5mm sensing distance, 5 meter PVC cable. Current product lifecycle.
$19.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 5mm sensing distance |
Output
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
Mechanical
| Parameter | Value |
|---|---|
| Cable length | 5 meter cable |
Other specifications
| Parameter | Value |
|---|---|
| Shield | Shielded |
| Weight | 0.00 kgs |
| Housing size | 18 mm diameter |
| Barrel length | Short body |
| Connection type | Pre-wired, PVC |
| Power source and output | PNP |
| Housing shape and material | Cylindrical, metric thread, brass |
Product details
Frequently asked questions
Is this sensor shielded?
Yes, it is shielded (flush mount), meaning it can be embedded in metal without affecting the sensing field up to the rated 5mm distance.
MPN
E2B-M18KS05-WP-B1 5M
