Omron E2B-M30KS10-M1-B2 — Proximity Sensors

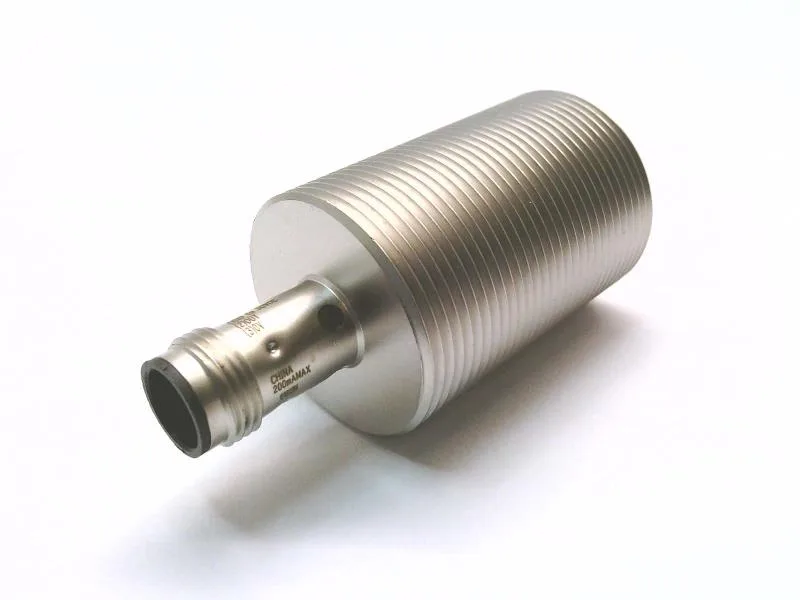

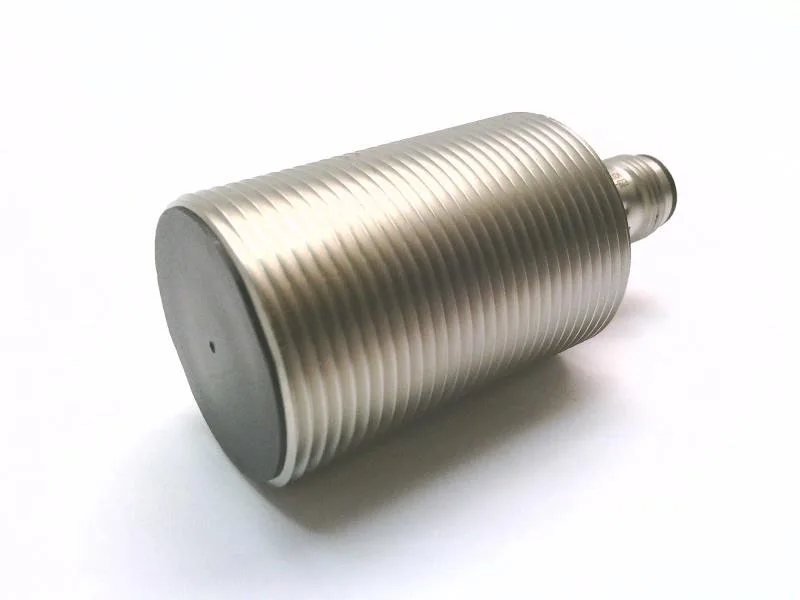

Omron E2B-M30KS10-M1-B2 Proximity, Shielded 10mm PNP NC

MPNE2B-M30KS10-M1-B2

Omron, E2B series, shielded proximity switch, 30 mm diameter, short body, PNP normally closed, M12 connector, 10 mm sensing distance.

$16.37Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2B-M30KS10-M1-B2 — Sensing
ParameterValue
Sensing distance10mm sensing distance
E2B-M30KS10-M1-B2 — Output
ParameterValue
Operation modeNormally closed
E2B-M30KS10-M1-B2 — Other specifications
ParameterValue
ShieldShielded
Weight0.45 kgs
Housing size30 mm diameter
Barrel lengthShort body
Connection typeM12 connector
Power source and outputPNP
Housing shape and materialCylindrical, metric thread, brass

Product details

The Omron E2B-M30KS10-M1-B2 is a shielded 30mm cylindrical proximity switch — short body, brass housing, PNP output, normally closed. It picks up ferrous targets at 10mm, which is a common range for a 30mm shielded sensor. The shielded construction means you can flush-mount it in metal without worrying about false triggers from surrounding steel.

How it compares with the cable version

If you're looking at the E2B-M30KS15-WP-B2 2M — same housing, shielded, NC, PNP — the key differences are connection type and sensing distance. This M1-B2 has an M12 connector; the WP-B2 comes with a 2-meter pre-wired PVC cable. The WP-B2 also reaches 15mm instead of 10mm. They're not drop-in interchangeable: swapping from cable to connector means you'll need a mating M12 cordset and possibly re-termination at the panel. If your target range is 15mm, the WP-B2 is the one. For 10mm and an M12 harness, this M1-B2 is it.

Frequently asked questions

What's the closest functional alternative?

The E2B-M30KS15-WP-B2 2M is functionally similar — same shielded 30mm body, NC output, PNP — but it uses a pre-wired 2M cable instead of an M12 connector and offers 15mm sensing distance instead of 10mm. They are not direct drop-in replacements because of the connection type.

Will the E2B-M30KS10-M1-B2 drop into a panel wired for the E2B-M30KS15-WP-B2 2M without rewiring?

No. The M1-B2 requires an M12 connector and a mating cordset; the WP-B2 has a pre-wired cable. You would need to change the field wiring interface at the sensor end.

MPN
E2B-M30KS10-M1-B2
