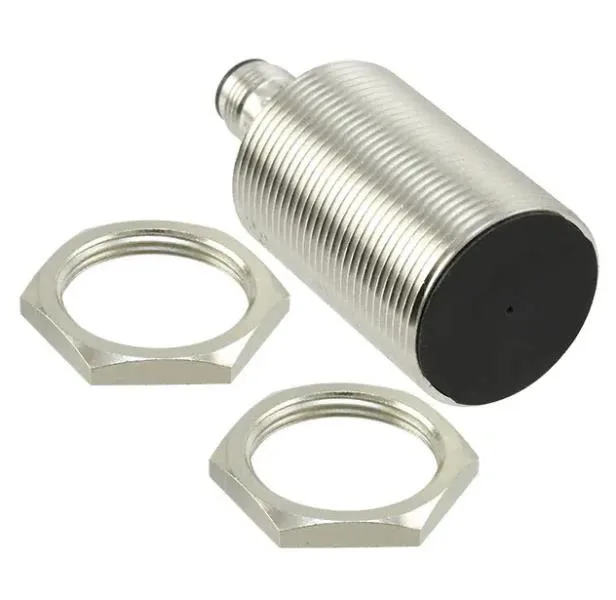

Omron E2B-M30KS15-M1-B2 Economy Proximity Sensor, M30 shielded, PNP NC, 15 mm sensing distance, M12 4-pin connector, 12-24 VDC, nickel-plated brass housing.
| Parameter | Value |
|---|---|
| Sensing distance | 15 mm |
| Parameter | Value |
|---|---|
| Supply voltage | 12 to 24 VDC |
| Connection / connector | M12 4-pin connector |
| Parameter | Value |
|---|---|
| Size | M30 |
| Parameter | Value |
|---|---|
| Output | PNP |
| Shielded | Shielded |
| Operation | NC |
| Case material | Nickel-plated Brass |
| Overall length | 64 |
| Threaded length | 44 |
The E2B-M30KS15-M1-B2: M30 shielded barrel delivers a reliable 15 mm flush-mount detection zone. PNP normally-closed output suits fail-safe wiring schemes — expect the load to drop on target presence.
M12 4-pin connector speeds field replacement; no cable gland work on the sensor side. Supply rides 12–24 VDC, compatible with standard 24 VDC control circuits. Nickel-plated brass housing stands up to coolant splash and mechanical contact in tooling stations.
15 mm shielded, PNP NC output.
No — the E2K-X15ME1 is a capacitive sensor with NPN output and a 2 m cable. Different sensing principle and wiring make it a non-trivial swap.
12–24 VDC.
