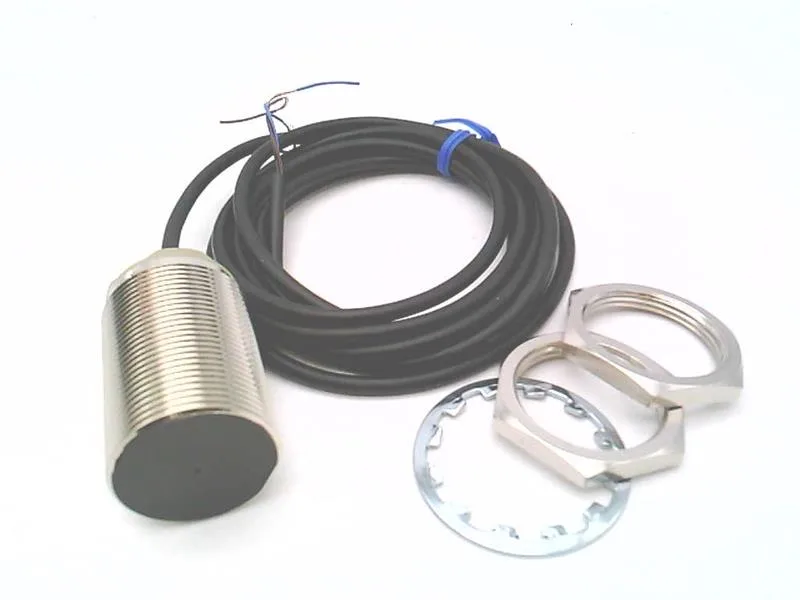

The Omron E2B-M30KS15-WP-B2 2M is a 30 mm diameter shielded inductive proximity sensor in the E2B series, giving 15 mm sensing distance on ferrous metals. Its normally closed PNP output with a 2 meter pre-wired PVC cable makes it a solid choice for replacing limit switches or other proximity sensors in control panels and automation lines where a dark-off signal and flush mounting are needed. Shielded construction means the sensor can be flush-mounted in metal without derating the sensing distance. The 15 mm nominal range is typical for flush-mounted M30 sensors, providing reliable detection of targets up to that distance.
Omron E2B-M30KS15-WP-B2 2M Inductive Prox, Shielded, PNP NC
MPNE2B-M30KS15-WP-B2 2M
Omron E2B-M30KS15-WP-B2 2M inductive proximity sensor, M30 shielded, PNP normally closed, 15 mm sensing distance, 2 m cable.
$12.57Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 15mm sensing distance |
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Shield | Shielded |
| Weight | 0.00 kgs |
| Housing size | 30 mm diameter |
| Barrel length | Short body |
| Connection type | Pre-wired, PVC |
| Power source and output | PNP |
| Housing shape and material | Cylindrical, metric thread, brass |
Product details
Frequently asked questions
Is the sensor shielded?
Yes, it is shielded. That means it can be mounted flush in metal without affecting the sensing performance.
MPN
E2B-M30KS15-WP-B2 2M
