Omron E2B-M30KS15-WP-C1 2M — Proximity Sensors

Omron E2B-M30KS15-WP-C1 2M Inductive Proximity, 15mm Shielde

MPNE2B-M30KS15-WP-C1 2M

Omron E2B series inductive proximity switch, shielded, 30 mm diameter, 15 mm sensing, NPN normally open, 2 m PVC cable.

$12.57Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2B-M30KS15-WP-C1 2M — Sensing
ParameterValue
Sensing distance15mm sensing distance
E2B-M30KS15-WP-C1 2M — Output
ParameterValue
Operation modeNormally open
E2B-M30KS15-WP-C1 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2B-M30KS15-WP-C1 2M — Other specifications
ParameterValue
ShieldShielded
Weight0.00 kgs
Housing size30 mm diameter
Barrel lengthShort body
Connection typePre-wired, PVC
Power source and outputNPN
Housing shape and materialCylindrical, metric thread, brass

Product details

What this sensor is and what matters for fit

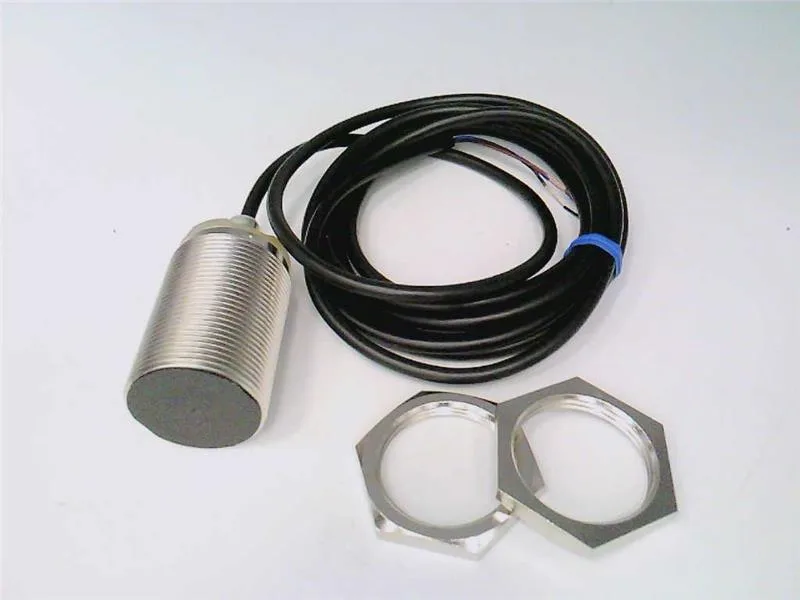

This Omron E2B-M30KS15-WP-C1 2M is a shielded inductive proximity switch with a 30 mm diameter cylindrical brass housing and a 15 mm sensing distance. It's a normally open, NPN sinking output sensor with a 2 meter PVC cable. The shielded construction means you can mount it flush in metal without the target getting detected through the side — that's the big difference vs. an unshielded model. For a machine builder or MRO planner, the 15 mm range is solid for detecting ferrous targets like cam followers or bolt heads on moving assemblies.

The E2B-M30KS15-WP-B2 2M is the same mechanical package — same shielded 30 mm barrel, 15 mm sensing, same 2 m PVC cable — but it uses PNP output and is normally closed. That means if your BOM calls for an NPN NO sensor like this C1, dropping in the B2 would require swapping the output polarity and the logic sense. No mechanical issue, but the wiring won't work without a re-pull. If you've got a PNP NC system, then the B2 is the match; otherwise this C1 is the correct part.

Frequently asked questions

Can I use the E2B-M30KS15-WP-B2 2M as a drop-in replacement?

No, the B2 uses PNP normally closed output while the C1 is NPN normally open. They are not electrically interchangeable without changing wiring and input card logic.

What is the sensing distance of this sensor?

The rated sensing distance is 15 mm for a standard ferrous target. It is shielded, so it can be flush-mounted in metal without derating the range.

MPN
E2B-M30KS15-WP-C1 2M
