Omron E2B series, inductive proximity sensor, 8 mm cylindrical stainless steel, unshielded, 4 mm sensing distance, PNP normally closed, M8 connector.
| Parameter | Value |
|---|---|
| Sensing distance | 4mm sensing distance |
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
| Parameter | Value |
|---|---|
| Shield | Unshielded |
| Weight | 0.45 kgs |
| Housing size | 8 mm diameter |
| Barrel length | Short body |
| Connection type | M8 connector |
| Power source and output | PNP |
| Housing shape and material | Cylindrical, metric thread, stainless steel |

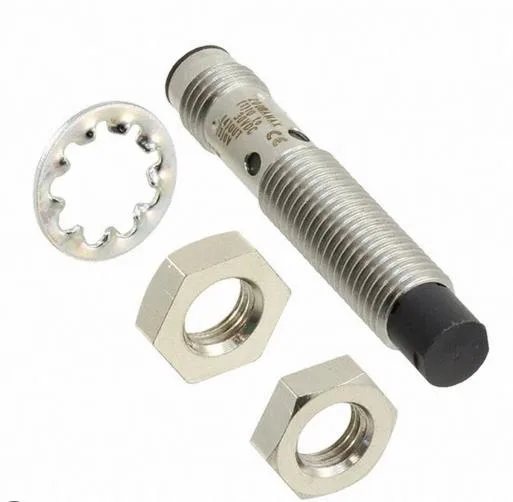

Omron E2B-S08KN04-MC-B2 is a cylindrical inductive proximity sensor in the E2B series, sized for 8 mm diameter threaded mounting. Sensing distance is 4 mm, unshielded, meaning it requires a non-flush installation to stay within rated range. Output is PNP normally closed, terminated via an M8 connector.
8 mm diameter stainless steel body, short barrel, unshielded. M8 connector, PNP normally closed output.
Unshielded. It requires a non-flush mounting environment to maintain the 4 mm sensing distance.
