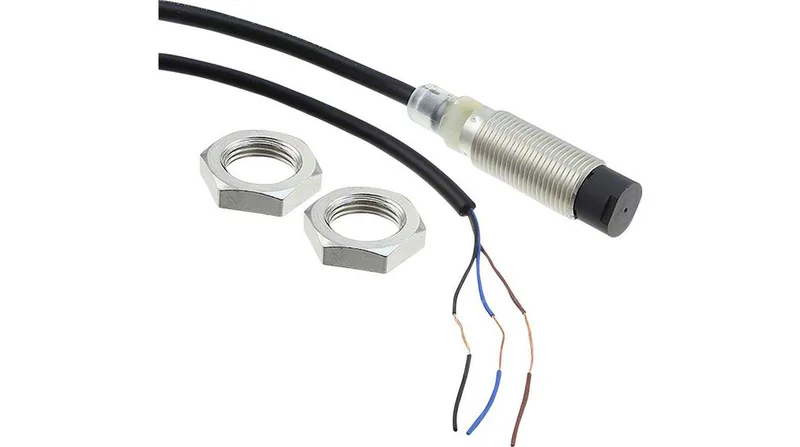

Omron E2BM12KN05WPB12MOMI — Proximity Sensors

Omron E2BM12KN05WPB12MOMI M12 Inductive Sensor, PNP NO, 5 mm

MPNE2BM12KN05WPB12MOMI

Omron E2B series E2BM12KN05WPB12MOMI M12 non-flush inductive sensor, PNP NO, 5 mm sensing range, 800 Hz switching frequency, IP67, cable 2 m.

$62.35Ref. price · indicative, final on quote
Omron E2BM12KN05WPB12MOMI datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2BM12KN05WPB12MOMI — Identification
ParameterValue
SeriesE2B
E2BM12KN05WPB12MOMI — Sensing
ParameterValue
Sensing distance, max.5 mm
E2BM12KN05WPB12MOMI — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeCable, 2 m
E2BM12KN05WPB12MOMI — Output
ParameterValue
Switching frequency800 Hz
Load current200 mA
E2BM12KN05WPB12MOMI — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length47 mm
Housing materialBrass
E2BM12KN05WPB12MOMI — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

The E2BM12KN05WPB12MOMI: M12 non-flush inductive sensor from the E2B series. PNP normally open output, 5 mm nominal sensing on mild steel, 800 Hz switching rate sufficient for high-speed part detection. Brass barrel, IP67 sealed, 2 m cable exits the barrel. Supply 10–30 VDC, load up to 200 mA. Non-flush mounting means no derating needed for the sensing face, but verify steel-free zone per the rated distance.

Frequently asked questions

Will E2BM12KN05WPB12MOMI drop into a panel that was specified around E2BS08KS02MCB120OMS without rewiring?

No. The M12 barrel requires a 17 mm hole versus the M8 sensor's smaller cutout, and the non-flush mounting has different standoff requirements. The cable (2 m) vs connector also changes wiring.
