What this sensor brings to the panel

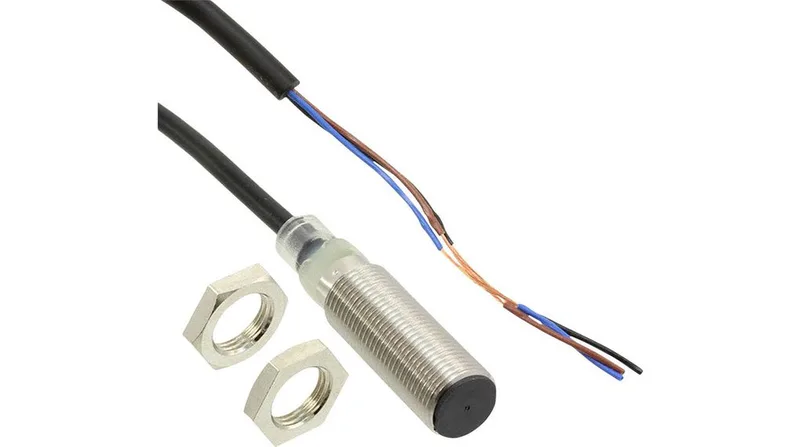

The Omron E2BM12KS04WPB15MOMI is a flush-mount M12 inductive proximity switch — PNP normally open output, 4 mm sensing distance, and a 5 m cable tail. It's compact: 17 mm square body (width and height), 47 mm length, so it fits neatly on a DIN rail or through a 12 mm panel hole without crowding adjacent sensors. Brass housing and IP67 rating mean it stands up to washdown and oil mist on the machine tool or conveyor.
Flush mount rated for steel targets at 4 mm. PNP NO sinks up to 200 mA; switching frequency 1 kHz, current consumption 10 mA, operating range 10-30 V DC.
How it compares to nearby choices
The 5 m cable is the big differentiator — the M8 peer E2BS08KS02MCB120OMS has a 3-pin M8 connector and 2 mm range, so it's a different mounting footprint and wiring. If you need a wider temperature span and IP69K washdown, the E2AM12KS04M1B14OMS (E2A series) covers -40 to 70 °C and adds a M12 connector, but loses the captive cable. The E2FX2F12MOMS has the same M12 form factor but only 2 mm sensing range and a 2 m cable in a plastic housing — this brass-bodied unit gives you double the range and a longer permanent cable for hard-to-reach spots.
