Omron E2BM18KN16WPB12MOMI — Proximity Sensors

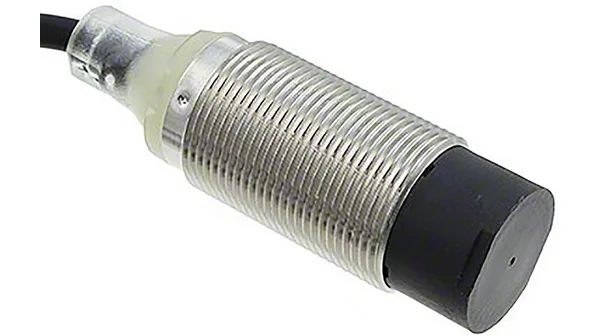

Omron E2BM18KN16WPB12MOMI Inductive Sensor, M18, 16 mm, PNP

MPNE2BM18KN16WPB12MOMI

Omron E2B series inductive proximity sensor, M18 non-flush, 16 mm sensing range, PNP normally open, 10-30 VDC, 200 mA load, IP67, pre-wired, 56 mm length.

$42.62 – $44.41Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2BM18KN16WPB12MOMI — Identification
ParameterValue
SeriesE2B
E2BM18KN16WPB12MOMI — Sensing
ParameterValue
Sensing distance, max.16 mm
E2BM18KN16WPB12MOMI — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typePre-Wired
E2BM18KN16WPB12MOMI — Output
ParameterValue
Switching frequency400 Hz
Load current200 mA
E2BM18KN16WPB12MOMI — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length56 mm
Housing materialBrass Nickel Plated
E2BM18KN16WPB12MOMI — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
E2BM18KN16WPB12MOMI — Other specifications
ParameterValue
Construction formM18
Current consumption10 mA
Inductive sensor output typePNP, Make Contact (NO)

Product details

The Omron E2BM18KN16WPB12MOMI is an M18 inductive proximity sensor from the E2B series, offering a 16 mm sensing distance in a non-flush mount configuration. It switches PNP normally open (NO) at up to 400 Hz, making it a solid choice for detecting ferrous targets through a non-metallic window or at a standoff. The 10-30 VDC supply range and 200 mA load current cover standard 24 VDC control circuits without extra conditioning.

The 16 mm sensing distance is the key number: it's the maximum rated detection range for a mild steel target, and it's achieved only with non-flush mounting (the sensor face extends past the surrounding metal). That means you need clearance around the barrel — about 3× the diameter (54 mm) of free space in the mounting surface to avoid derating the range. The brass nickel-plated barrel and IP67 rating let it handle washdown and coolant splash on machine tools or conveyor lines, though the pre-wired cable (2 m, typically) means you're committing to a fixed lead length rather than a quick-disconnect connector.

Frequently asked questions

What is the length of E2BM18KN16WPB12MOMI?

The listed length is 56 mm, which includes the threaded barrel and the hex-nut body; the pre-wired cable adds additional length beyond that.

What series does E2BM18KN16WPB12MOMI belong to?

It is part of the Omron E2B series, a standard cylindrical inductive proximity sensor line with brass or stainless steel housings.
