Omron E2BM18LN16M1B1OMI — Proximity Sensors

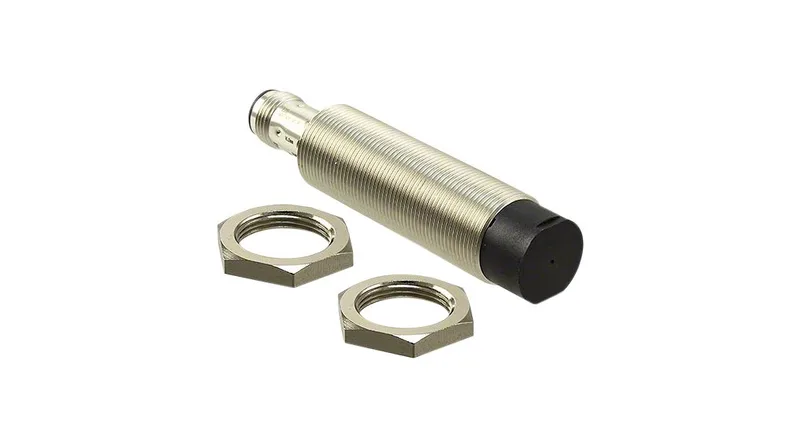

Omron E2BM18LN16M1B1OMI M18 Inductive Sensor PNP NO 16mm

MPNE2BM18LN16M1B1OMI

Omron E2B Series, M18 inductive proximity sensor, non-flush mount, PNP NO, 16 mm sensing distance, 400 Hz, IP67, M12 4-pin connector.

Omron E2BM18LN16M1B1OMI datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2BM18LN16M1B1OMI — Identification
ParameterValue
SeriesE2B
E2BM18LN16M1B1OMI — Sensing
ParameterValue
Sensing distance, max.16 mm
E2BM18LN16M1B1OMI — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin
E2BM18LN16M1B1OMI — Output
ParameterValue
Switching frequency400 Hz
Load current200 mA
E2BM18LN16M1B1OMI — Mechanical
ParameterValue
Mounting typeNon Flush Mount
Length81 mm
Housing materialBrass
E2BM18LN16M1B1OMI — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

The Omron E2BM18LN16M1B1OMI is an M18 threaded-cylinder inductive proximity sensor with a 16 mm nominal sensing distance, non-flush mount, PNP normally-open output, and M12 4-pin connector.

Sensing distance is 16 mm for a mild steel target. Switching frequency is 400 Hz. Repeat accuracy is 10 %. Non-flush mount means the sensing face must be set back from surrounding metal or a non-metallic window must be provided — a common oversight when replacing a flush-mount sensor in a threaded hole.

The E2BS08KS02MCB120OMS is an M8 flush-mount sensor with a 2 mm sensing distance and M8 3-pin connector. It is not a panel drop-in replacement: the mounting thread, flush/non-flush behavior, and connector type differ. Use the E2BS08 only when space limits to an 8 mm body and the target gap is under 2 mm.

Frequently asked questions

What are the key specifications?

16 mm nominal sensing distance (non-flush), PNP normally open output, switching frequency up to 400 Hz, repeat accuracy 10 %, operating voltage 10–30 V, load current 200 mA, IP67 protection, brass housing, M12 4-pin connector.

MPN
E2BM18LN16M1B1OMI
