Omron E2BM18LS08M1B1 — Proximity Sensors

Omron E2BM18LS08M1B1 Inductive Proximity Sensor, Shielded, 8

MPNE2BM18LS08M1B1

Omron E2B series, inductive proximity sensor, shielded, PNP normally open, M12 connector, 8 mm sensing distance, IP67.

$10.03Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E2BM18LS08M1B1 — Identification
ParameterValue
SeriesE2B

Product details

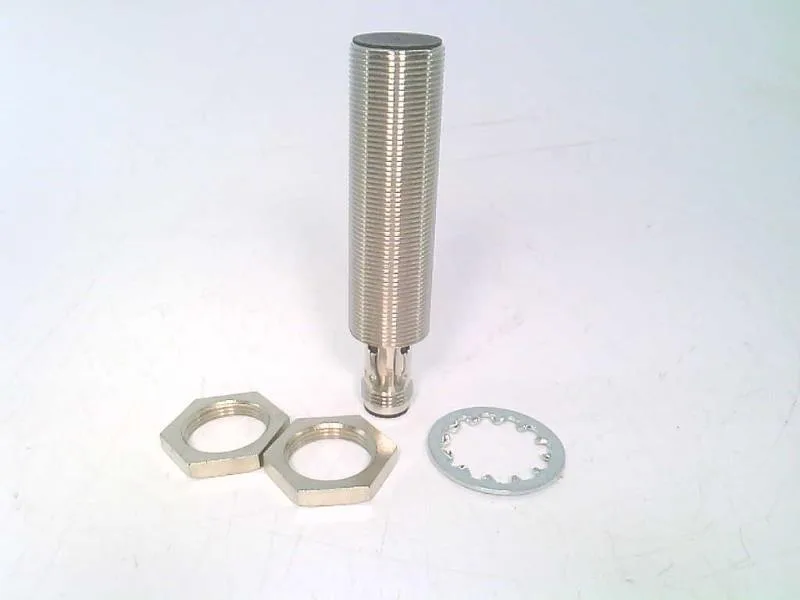

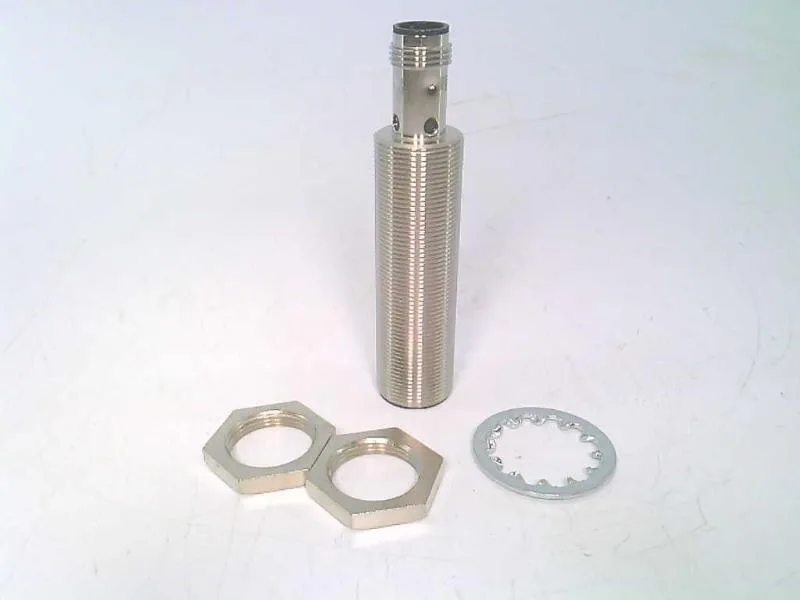

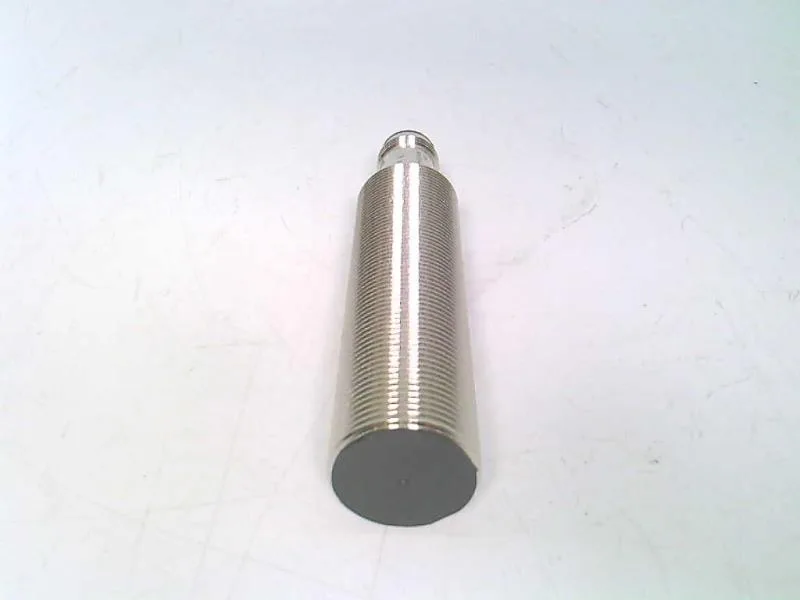

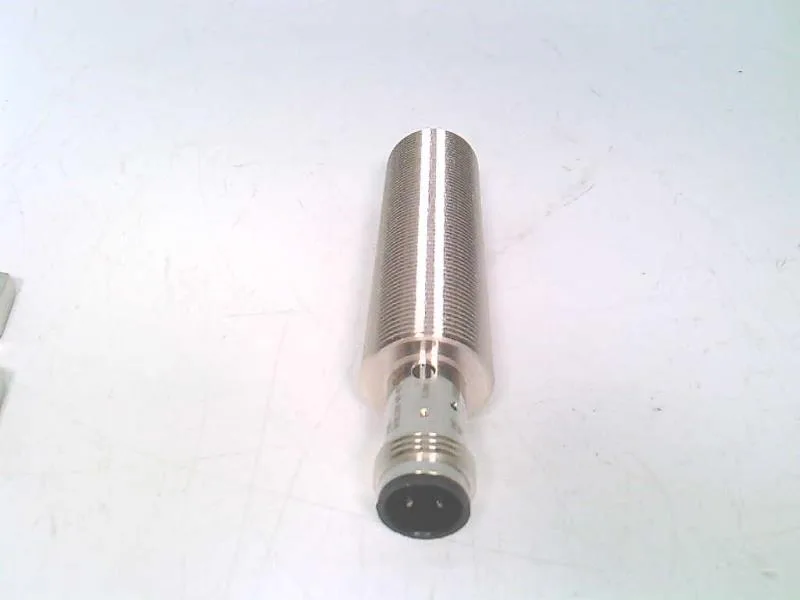

The Omron E2BM18LS08M1B1 is a shielded M18 inductive proximity sensor from the E2B series, switching PNP normally open at 8 mm on ferrous metal targets (24 × 24 × 1 mm standard).

Rated supply voltage 30 V DC, switching current 0.01 A, with a brass-nickel plated housing and IP67 protection. Terminated via a 4-pin M12 connector. Operates from -25 to 70 °C.

Frequently asked questions

Will E2BM18LS08M1B1 drop into a panel specified around E2B-M18LS08-M1-B1 without rewiring?

Yes, the two order codes refer to the same sensor. The only difference is the dash in the code. All electrical and mechanical specifications are identical.

MPN
E2BM18LS08M1B1
