Omron E2BS08KS02MCB120OMS — Proximity Sensors

Omron E2BS08KS02MCB120OMS Sensor, PNP NO, 2mm, 1.5kHz

MPNE2BS08KS02MCB120OMS

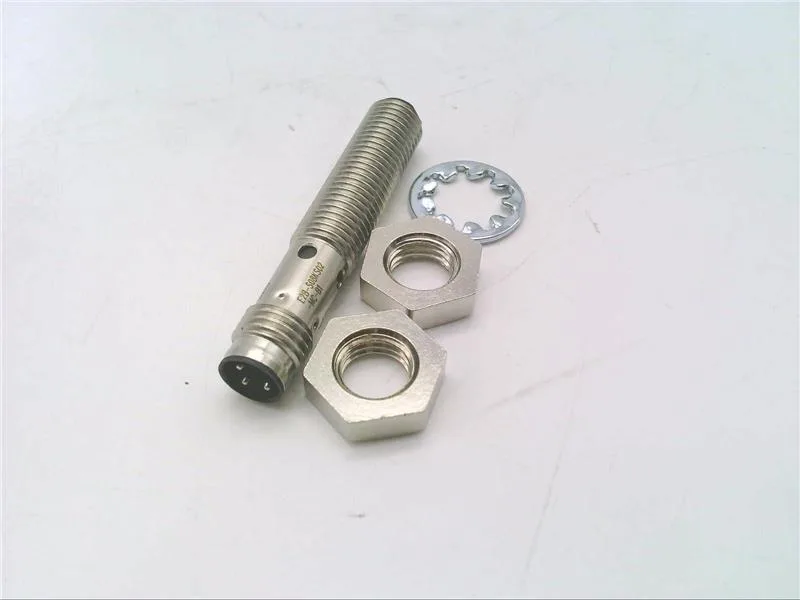

Omron E2B Series, E2BS08KS02MCB120OMS, Inductive Sensor, M8 Flush Mount, PNP NO, 2 mm, 1.5 kHz, 10-30 VDC, M8 3-Pin, IP67.

Omron E2BS08KS02MCB120OMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2BS08KS02MCB120OMS — Identification
ParameterValue
SeriesE2B
E2BS08KS02MCB120OMS — Sensing
ParameterValue
Sensing distance, max.2 mm
E2BS08KS02MCB120OMS — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M8, 3-Pin
E2BS08KS02MCB120OMS — Output
ParameterValue
Switching frequency1.5 kHz
Load current200 mA
E2BS08KS02MCB120OMS — Mechanical
ParameterValue
Mounting typeFlush Mount
Length44 mm
Housing materialStainless Steel
E2BS08KS02MCB120OMS — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

What this sensor is — and what trips people up on fit

The Omron E2BS08KS02MCB120OMS is a flush-mount inductive sensor with PNP normally open output. It features 2 mm sensing distance, 1.5 kHz switching, 10–30 VDC supply, M8 3-pin connector, and IP67 rating.

How it sits against the cable-variant and a near-identical sibling

The closest peer is E2BS08KS02MCB1OMI: same dimensions, same sensing distance, same output type, same switching frequency, same IP67. The only difference visible in the ordering code is the suffix — the connector and pinout are identical M8 3-pin. For a panel swap, it drops in without rewiring. The more obvious alternative is E2BS08KS02WPB15MOMI, which carries a 5-meter PVC cable instead of the M8 connector. That variant adds field-termination flexibility but prevents quick disconnection at the sensor head.

Frequently asked questions

What is the sensing distance?

2 mm from a ferrous target when flush-mounted.

Is it PNP or NPN, normally open or closed?

PNP normally open (make contact).

What connector does it use?

M8 3-pin connector; standard pinout for Omron E2B sensors.

What is the switching frequency?

1.5 kHz, suitable for detecting targets passing at moderate line speeds.

Is it flush or non-flush mount?

Flush-mount rated — can be recessed into metal without derating the sensing distance.

Can I use E2BS08KS02MCB1OMI as a direct replacement?

All measurable specs match, including connector and mounting. Functionally interchangeable for a drop-in swap.

MPN
E2BS08KS02MCB120OMS
