Omron E2C-EDA11 2M — Proximity Sensors

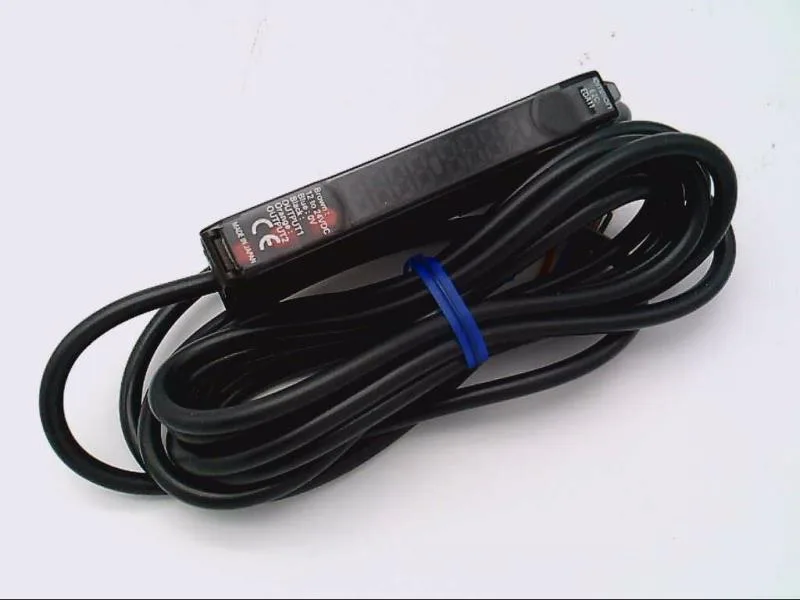

Omron E2C-EDA11 2M Amplifier Unit, NPN/PNP Output

MPNE2C-EDA11 2M

Omron, E2C-EDA11 2M, Amplifier Unit with Cables, NPN/PNP Open Collector Output, 12-24 VDC, 50 mA max, 2 m cable.

$219.71 – $227.20Ref. price · indicative, final on quote
Omron E2C-EDA11 2M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2C-EDA11 2M — Electrical
ParameterValue
Supply voltage12 to 24 VDC ±10%, ripple (p-p): 10% max.
E2C-EDA11 2M — Other specifications
ParameterValue
ModelNPN Output
WeightApprox. 0.10 Kg
Product typeAmplifier Units with Cables
Control outputLoad power supply voltage: 26.4 VDC max.; NPN/PNP open collector output; load current: 50 mA max. (residual voltage: 1 V max.)
Ambient humidityOperating/storage: 35% to 85% (with no condensation)
Connection methodPre-wired
Power consumption1,080 mW max. (current consumption: 45 mA at power supply voltage of 24 VDC)
Dielectric strength1,000 VAC at 50/60 Hz for 1 min
IP ratingIEC60529 IP50
Insulation resistance20 MO min. (at 500 VDC)
Shock resistance (Destruction)500 m/s2 for 3 times each in X, Y, and Z directions
Vibration resistance (Destruction)10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Product details

The Omron E2C-EDA11 2M is an amplifier unit with a pre-wired 2 m cable, delivering an NPN/PNP open collector output rated at 50 mA max with a residual voltage of 1 V max. The amplifier is used with E2C-series sensor heads to condition their output for a PLC or other controller input. The NPN/PNP selection is wired per your logic family; the open collector drives a standard digital input module.

The unit is enclosed to IP50 (IEC60529) and is pre-wired — no connector to source separately. Shock and vibration ratings are listed for destruction limits; mounting is via the amplifier housing into a panel or DIN rail (not specified in data, but typical for this series). For sourcing, provide the exact MPN against an RFQ. No direct second-source is listed; the E2C-EDA11 2M is the standard amplifier for the E2C sensing range.
