Omron E2C-X1R5AH — Proximity Sensors

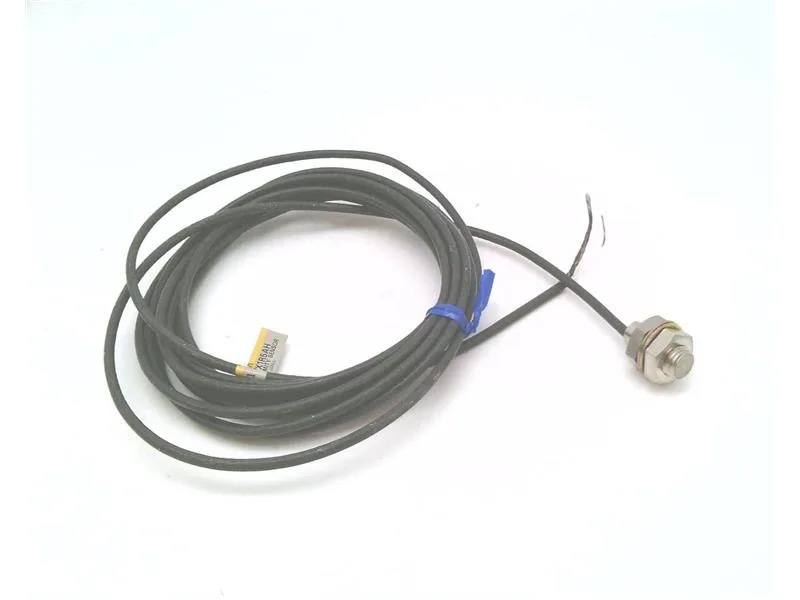

Omron E2C-X1R5AH Proximity Sensor Head, 1.5mm, 200°C

MPNE2C-X1R5AH

Omron E2C-X1R5AH Separate Amplifier Proximity Sensor Head, Shielded M8, 1.5 mm, -10 to 200°C, Pre-wired 3 m.

$111.76Ref. price · indicative, final on quote
Omron E2C-X1R5AH datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2C-X1R5AH — Identification
ParameterValue
TypeHeat-resistance model, Cylinder type (with screw) Sensor Head, Shielded
E2C-X1R5AH — Sensing
ParameterValue
Sensing distance1.5 mm

Product details

Heat-Resistant Sensor Head for High-Temp Zones

The Omron E2C-X1R5AH is a heat-resistant shielded M8 proximity sensor head designed for the separate amplifier series (E2C). With a sensing distance of 1.5 mm on an iron standard target (8 x 8 x 1 mm), it operates from -10 to 200 °C, making it suitable for environments like ovens, injection molding, or glass processing where standard sensors fail. Temperature influence is ±0.2% per °C, so account for drift in precision applications.

Procurement Reality

This sensor head is specialized for high-temp use and is not a universal shelf item. For BOM line fill, expect to order against a quotation. Confirm the amplifier unit (E2C-AM4A or E2C-AK4A) is available separately if not already on hand.

Frequently asked questions

What is the sensing distance and target spec?

Sensing distance is 1.5 mm on an iron standard target of 8 x 8 x 1 mm. Sensitivity decreases with non-ferrous metals.

Which Omron amplifier unit is compatible?

This sensor head works with the E2C-AM4A or E2C-AK4A amplifier unit. Without the amplifier, it will not function.

Will the E2C-X1R5AH drop into a panel specified for an E2E-X1R5B1D8 5M?

No. The E2C-X1R5AH requires a separate amplifier unit and has a different cable (fluoride resin) and temperature rating. The E2E is self-contained with PNP output and IP67, so wiring and mounting differ.

MPN
E2C-X1R5AH
