Omron E2E-S05S12-WC-B1 5M — Proximity Sensors

Omron E2E-S05S12-WC-B1 5M Proximity Switch, 5mm Shielded, PN

MPNE2E-S05S12-WC-B1 5M

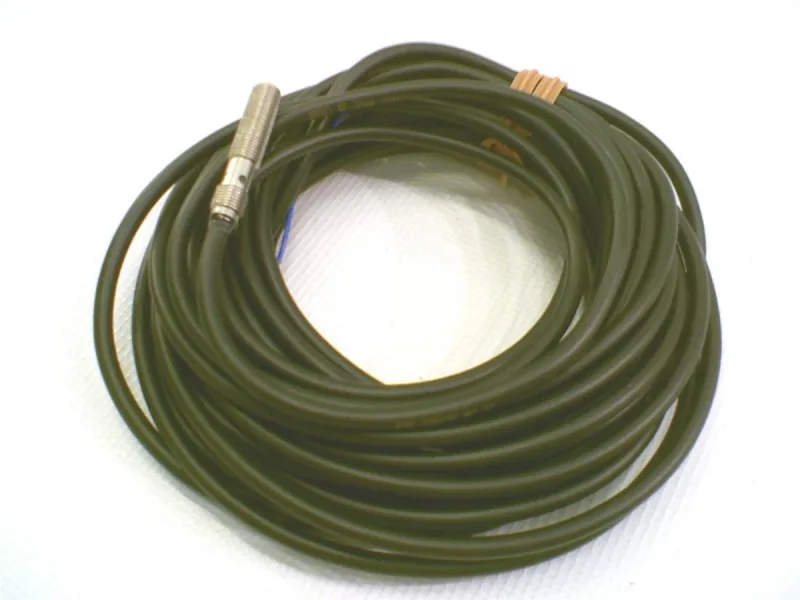

Omron E2E-S05S12-WC-B1 5M, Shielded inductive proximity switch, 5mm dia., 1.2mm sense, PNP NO, 5m PVC cable, threaded case.

$26.80Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E-S05S12-WC-B1 5M — Sensing
ParameterValue
Sensing distance1.2 mm sensing distance
ShieldingShielded
E2E-S05S12-WC-B1 5M — Output
ParameterValue
Operation modeNormally open
E2E-S05S12-WC-B1 5M — Mechanical
ParameterValue
Size5mm diameter
Cable length5 meter length
E2E-S05S12-WC-B1 5M — Other specifications
ParameterValue
CaseThreaded
Weight0.45 kgs
Connecting methodPre-wired model
Cable specificationsPVC cable
Output specificationsDC 3-wire PNP open-collector

Product details

Omron E2E-S05S12-WC-B1 5M is a 5mm diameter threaded shielded inductive proximity switch, pre-wired with a 5-meter PVC cable. It gives you a PNP normally open open-collector output, sensing ferrous metals up to 1.2 mm away. That's a tight sensing gap, so it's meant for precise presence detection in small mechanisms—think cam lobes, actuator positions, or part-present on a pick-and-place gripper.

At 5 mm diameter and shielded, you can thread it into a standard 5 mm hole and mount it flush with the surrounding metal. The shield prevents the field from radiating sideways, so you won't get false triggers from adjacent metal. The threaded case gives you a positive stop; a jam nut locks it in place. Pre-wired with 5 m of PVC cable—that's enough to reach a terminal block inside a small panel without a junction box.

Frequently asked questions

What is the case style and sensing distance?

The case is threaded cylindrical, 5mm diameter. Sensing distance is 1.2 mm for ferrous metals. The shield allows flush mounting.

MPN
E2E-S05S12-WC-B1 5M
