Omron E2E-X10F1 2M — Proximity Sensors

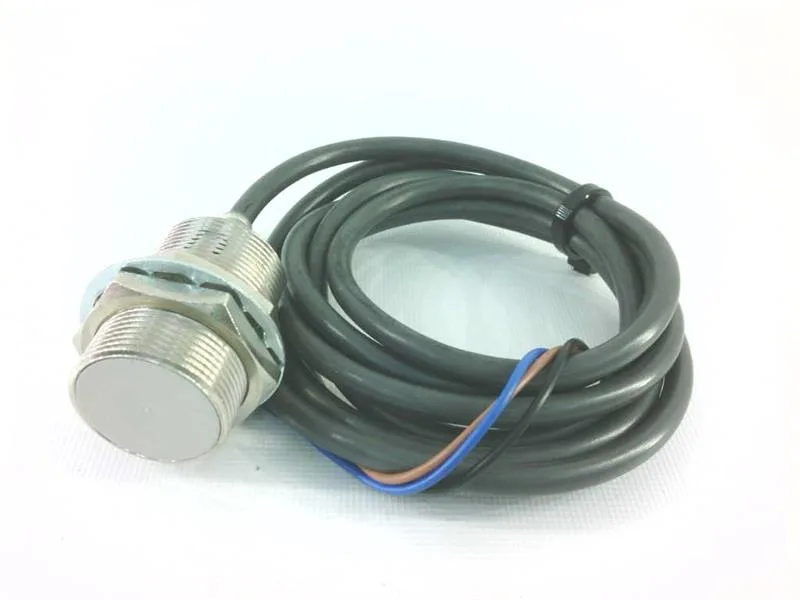

Omron E2E-X10F1 2M Proximity Sensor, Shielded, 10mm, PNP NO

MPNE2E-X10F1 2M

Omron E2E series, shielded inductive proximity sensor, order code E2E-X10F1 2M, DC 3-wire PNP normally open, 10 mm sensing distance, 2 m PVC cable.

$117.01Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E2E-X10F1 2M — Sensing
ParameterValue
Sensing distance10 mm sensing distance
ShieldingShielded
E2E-X10F1 2M — Output
ParameterValue
Switching outputNormally open
E2E-X10F1 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2E-X10F1 2M — Other specifications
ParameterValue
Weight0.18 kgs
Cable specsPVC cable
Self-DiagnosisNo self-diagnosis
Oscillation frequencyStandard frequency
Power supply & outputDC 3-wire, PNP collector load built-in

Product details

The E2E-X10F1 2M is a shielded inductive proximity sensor from Omron's E2E series, delivering a 10 mm sensing distance with a PNP normally-open output on a DC 3-wire supply. The attached 2-meter PVC cable lets you wire it directly into the control cabinet without a separate connector. No self-diagnosis, so if your application needs fault detection, you'll need to monitor the output separately or add a diagnostic module further down the line.

DC 3-wire PNP output: brown, blue, and black wires. Shielded construction allows flush mounting in metal without derating.

MPN
E2E-X10F1 2M
