Omron E2E-X10ME2 2M — Proximity Sensors

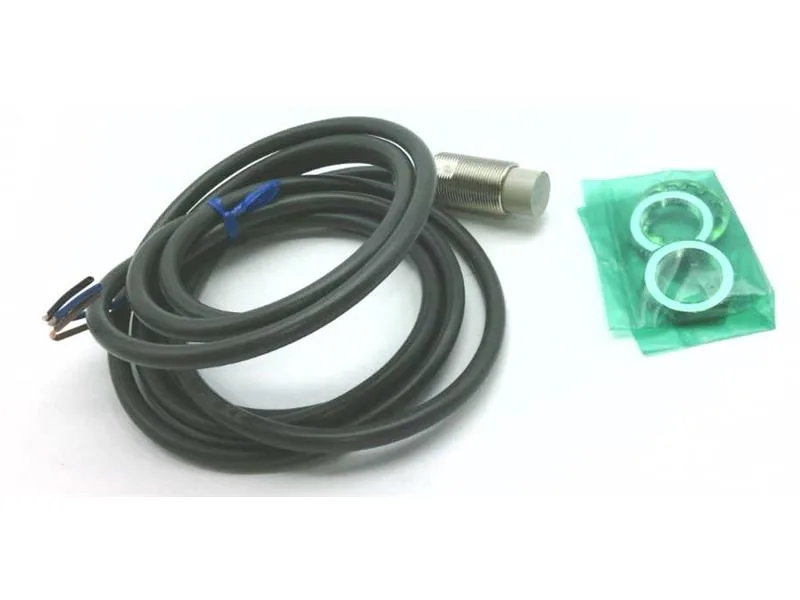

Omron E2E-X10ME2 2M Proximity Switch, 10mm NC

MPNE2E-X10ME2 2M

Omron E2E standard inductive proximity switch, unshielded, 10 mm sensing distance, NPN normally closed output, 2 m PVC cable, 0.45 kg.

$98.63Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E-X10ME2 2M — Sensing
ParameterValue
Sensing distance10 mm sensing distance
ShieldingUnshielded
E2E-X10ME2 2M — Output
ParameterValue
Switching outputNormally closed
E2E-X10ME2 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2E-X10ME2 2M — Other specifications
ParameterValue
Weight0.45 kgs
Cable specsPVC cable
Self-DiagnosisNo self-diagnosis
Oscillation frequencyStandard frequency
Power supply & outputDC 3-wire, NPN collector load built-in

Product details

The Omron E2E-X10ME2 2M is an unshielded inductive proximity switch with a 10 mm sensing distance, outputting NPN normally closed over a 2-meter PVC cable.

The 10 mm sensing range is rated for standard ferrous targets; unshielded construction means no metal-free zone around the face, so it can be flush-mounted in steel if the datasheet allows, but verify head-to-target material. Normally closed output means the switch opens when a target is present—useful for fail-safe wiring where a broken wire mimics an absent target, triggering the safety logic. DC 3-wire NPN output sinks current; confirm the PLC input card is sourcing (PNP compatible) or use a pull-up resistor.

Frequently asked questions

What does the unit weigh?

The unit weighs 0.45 kgs.

Can I replace E2KQ-X10ME1 with E2E-X10ME2 2M without changing wiring?

No—E2KQ-X10ME1 is a capacitive sensor with NPN normally open output, while the E2E-X10ME2 2M is inductive with NPN normally closed output. The output logic and sensing principle differ, so rewiring and possibly a sensor type change are required.

MPN
E2E-X10ME2 2M
