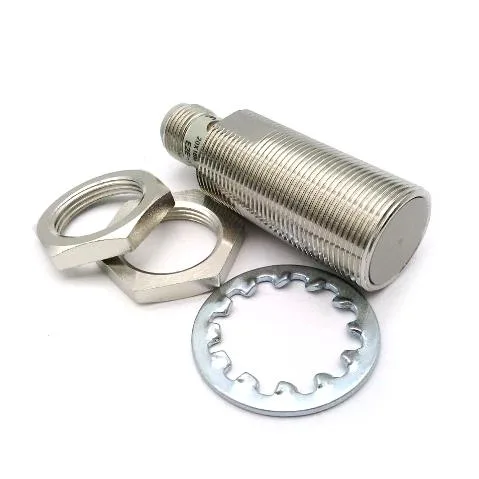

Omron E2E series, inductive proximity sensor, E2E-X10ME2-M1, 10 mm sensing distance, unshielded, NPN normally closed output, DC 3-wire, M12 connector.
| Parameter | Value |
|---|---|
| Sensing distance | 10 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Switching output | Normally closed |
| Parameter | Value |
|---|---|
| Weight | 0.09 kgs |
| Self-Diagnosis | No self-diagnosis |
| Connection method | M12 connector |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, NPN collector load built-in |
It delivers a NPN normally closed output over a 3-wire DC supply and terminates through an M12 connector.
The unshielded design allows a 10 mm sensing range without the need for a metal background shield, simplifying mounting on machine frames. The NPN normally closed output provides a fail-safe signal drop on target absence or power loss, which matches standard PLC sinking inputs. The M12 connector enables a faster field-swap than hardwired cable, reducing line downtime.
Sensing distance is 10 mm (unshielded) with a NPN normally closed switching output, DC 3-wire.
