Omron E2E-X10MY1 2M — Proximity Sensors

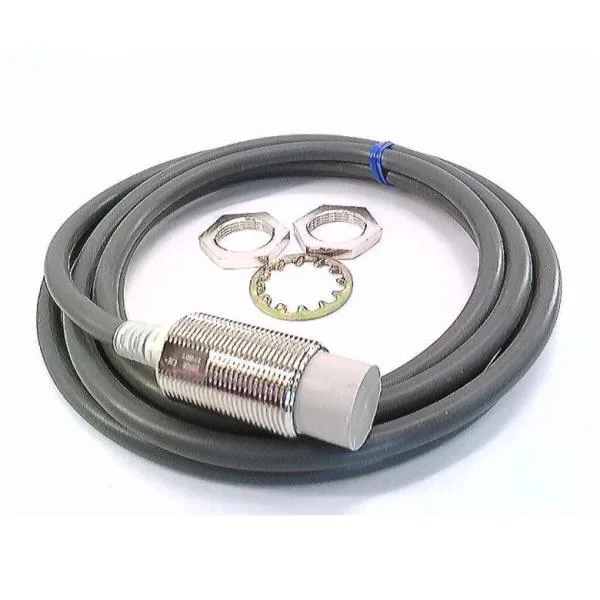

Omron E2E-X10MY1 2M AC 2-wire Proximity Switch, 10mm

MPNE2E-X10MY1 2M

Omron E2E-X10MY1 2M inductive proximity switch, AC 2-wire, unshielded, 10mm sensing distance, NO output, 2m PVC cable, 0.45 kg.

$62.87Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E2E-X10MY1 2M — Sensing
ParameterValue
Sensing distance10 mm sensing distance
ShieldingUnshielded
E2E-X10MY1 2M — Output
ParameterValue
Switching outputNormally open
E2E-X10MY1 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2E-X10MY1 2M — Other specifications
ParameterValue
Weight0.45 kgs
Cable specsPVC cable
Self-DiagnosisNo self-diagnosis
Oscillation frequencyStandard frequency
Power supply & outputAC 2-wire

Product details

What you're looking at

Omron E2E-X10MY1 2M is an AC 2-wire inductive proximity switch: unshielded, 10 mm sensing distance, normally open output, standard oscillation frequency, no self-diagnosis. Comes with a 2-meter PVC cable. That's your basic presence detection for ferrous metal targets on a standard AC control circuit.

Drop-in or not? E2KQ-X10ME1

If you're looking at E2KQ-X10ME1 as a second source, stop. That's a capacitive sensor with NPN-NO 3-wire DC output, plastic body, and a different sensing principle. E2E-X10MY1 2M is inductive, AC 2-wire, metal housed. No rewiring path exists between them – different supply voltage, different output wiring, different target material sensitivity.

Frequently asked questions

What is the sensing distance and output?

10 mm, normally open, and it's an AC 2-wire switch. No self-diagnosis.

Will E2E-X10MY1 2M drop into a panel wired for E2KQ-X10ME1?

No. The E2KQ-X10ME1 is a capacitive DC NPN 3-wire sensor. This is inductive AC 2-wire. Completely different wiring and supply requirements.

What does the cable length and type come as?

2 meter PVC cable, attached.

MPN
E2E-X10MY1 2M
