Omron E2E-X14MD1 2M — Proximity Sensors

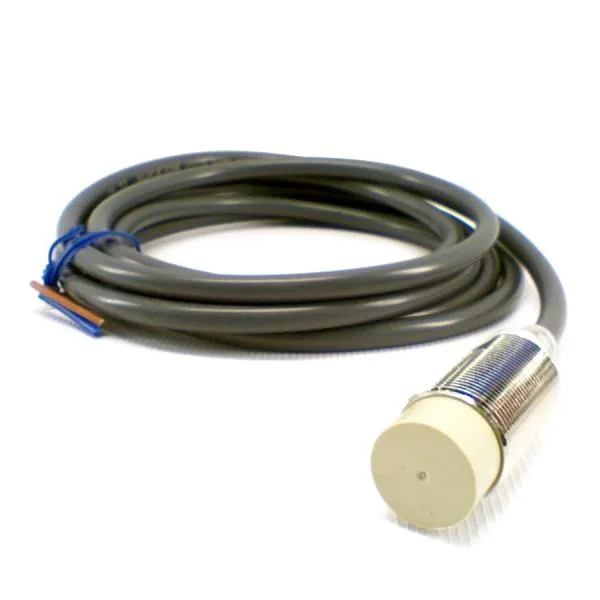

Omron E2E-X14MD1 2M Proximity Sensor, 14 mm Range

MPNE2E-X14MD1 2M

Omron E2E NEXT series, inductive proximity sensor, E2E-X14MD1 2M, unshielded, 14 mm range, DC 2-wire NO, 2 m PVC cable.

$58.04Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E-X14MD1 2M — Sensing
ParameterValue
Sensing distance14 mm range
ShieldingUnshielded
E2E-X14MD1 2M — Output
ParameterValue
Operation modeNormally open
E2E-X14MD1 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2E-X14MD1 2M — Other specifications
ParameterValue
Weight0.50 kgs
PolarityPolarity
Cable typePVC cable
Body lengthStandard length
Output configurationDC 2-wire
Oscillation frequencyStandard freq.

Product details

A common cross-reference candidate is the E2KQ-X10ME1, but it is not a functional substitute. That sensor is capacitive (detects non-metal), uses a 3-wire NPN output with 10–30 VDC supply, and has a shorter adjustable sensing distance of 6–10 mm. The E2E-X14MD1 2M is inductive, 2-wire, and fixed 14 mm range. Rewiring and sensor type change would be required; they share only the cable-lead termination style and unshielded characteristic.

Standard body length and unshielded design mean the sensor does not need a flush mount; it can be installed with a standard bracket. The 2 m PVC cable reaches most junction boxes without a splice. DC 2-wire wiring is polarity-sensitive, so observe marking.

MPN
E2E-X14MD1 2M
