Omron E2E-X14MD1-M1G — Proximity Sensors

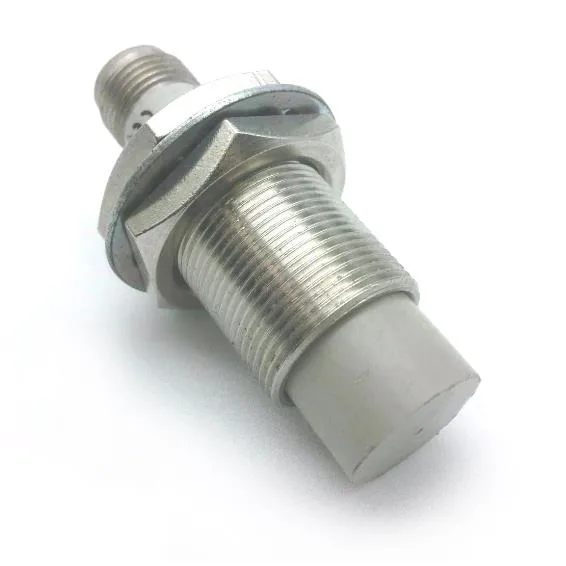

Omron E2E-X14MD1-M1G Prox Sensor, 14mm Unshielded

MPNE2E-X14MD1-M1G

Omron E2E NEXT series inductive proximity sensor, E2E-X14MD1-M1G, 14 mm unshielded sensing range, DC 2-wire normally-open output, M12 connector.

$85.85Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E-X14MD1-M1G — Sensing
ParameterValue
Sensing distance14 mm range
ShieldingUnshielded
E2E-X14MD1-M1G — Output
ParameterValue
Operation modeNormally open
E2E-X14MD1-M1G — Other specifications
ParameterValue
Weight0.00 kgs
PolarityPolarity
Body lengthStandard length
Connection methodM12 connector (IEC arrangement)
Output configurationDC 2-wire
Oscillation frequencyStandard freq.

Product details

The E2E-X14MD1-M1G is listed as current-stage production. If your BOM calls this exact order code, there's no urgency to stockpile or hunt surplus — it's a standard catalog item.

Integration note

Unshielded construction means the sensor face must not be flush-mounted in ferrous metal. M12 pinout follows the standard IEC arrangement for 2-wire DC — verify polarity on the load side. 14 mm range is a decent reach for an unshielded cylindrical M18 package.

MPN
E2E-X14MD1-M1G
