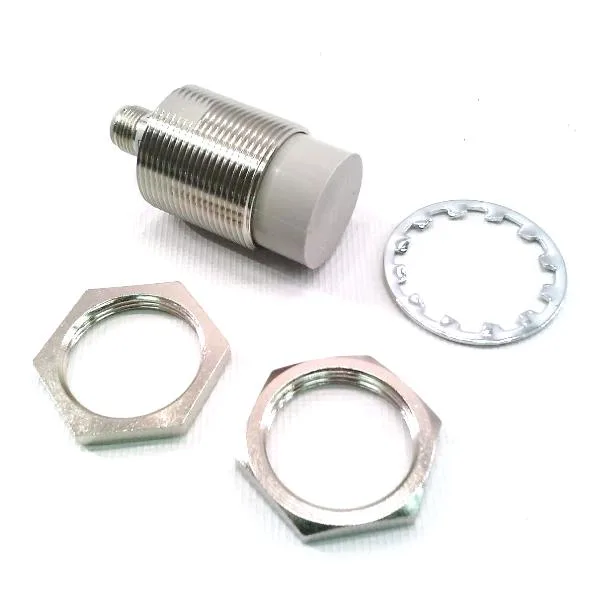

The Omron E2E-X18MY1-M1 is an inductive proximity switch from the established E2E series, designed for AC control circuits. It delivers an 18 mm sensing distance unshielded, switches on a normally open output, and connects via a standard M12 connector. This is a 2-wire AC device, meaning the sensor is wired in series with the load across the AC supply. No separate DC power supply needed, but reverse polarity protection does not apply here. The output changes state when a metal target enters the sensing field.
Sourcing & Lifecycle
The E2E-X18MY1-M1 has a current production lifecycle status.
The E2KQ-X10ME1 is a capacitive, DC-powered sensor (10-30 VDC, NPN-NO, 3-wire, cable leads, plastic body) with a shorter adjustable sensing range. It is not a functional replacement - the AC 2-wire inductive vs DC 3-wire capacitive difference means the wiring and power supply must change completely. No direct cross-reference.
