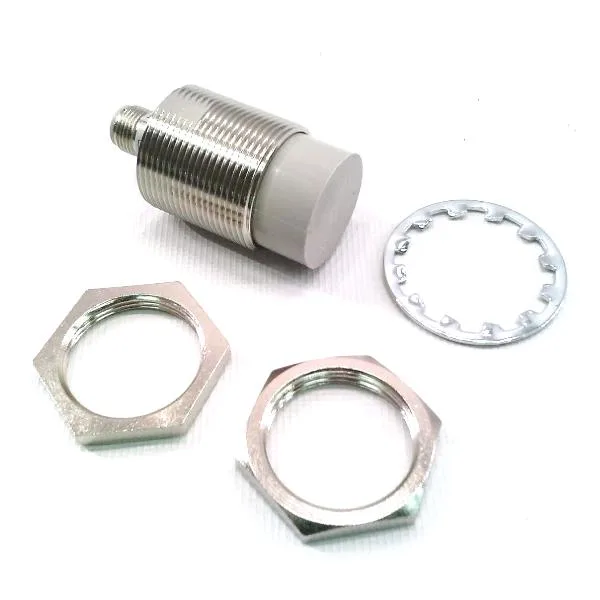

Omron's E2E-X18MY2-M1 is an unshielded inductive proximity sensor with an 18 mm sensing distance. It provides a normally closed AC 2-wire output and terminates via an M12 connector — the standard for industrial quick‑disconnect. This is a current‑production part; no lifecycle concern for a new BOM line.
What the ratings mean for fit
The 18 mm sensing distance is the rated detection range for a standard carbon‑steel target. Because the sensor is unshielded, it allows mounting flush with surrounding metal — though the actual sensing gap may need to be derated if installed in a confined cavity. The normally closed output means the switch opens when a target enters the field; wire it as a fail‑safe for presence detection (target present = output off). AC 2‑wire simplifies wiring into a control circuit (no separate supply or load resistor) but restricts the load type — confirm the connected load's minimum holding current to avoid false chatter. The M12 connector mates directly with standard M12 cordset, reducing panel wiring time.
Where it's used
These inductive proximity sensors are common in position detection on conveyor lines, part‑present feedback, machine‑safety interlocks (non‑safety‑rated), and bin‑level detection in industrial automation. The AC 2‑wire style is often chosen for retrofit into existing control circuits running on mains voltage without a separate DC supply.
Sourcing and lifecycle
The E2E‑X18MY2‑M1 is listed as current production. There is no announced end‑of‑life or last‑time‑buy. We can source this part for RFQ; specify it into your BOM with confidence. If your application requires a functional second‑source, note that the capacitive E2KQ‑X10ME1 is a different sensing technology (capacitive vs inductive) and uses a different output (NPN‑NO 3‑wire), so it is not a drop‑in replacement. Stick with the Omron E2E inductive series for same‑class alternates; we can help cross‑reference within the same E2E family on request.
