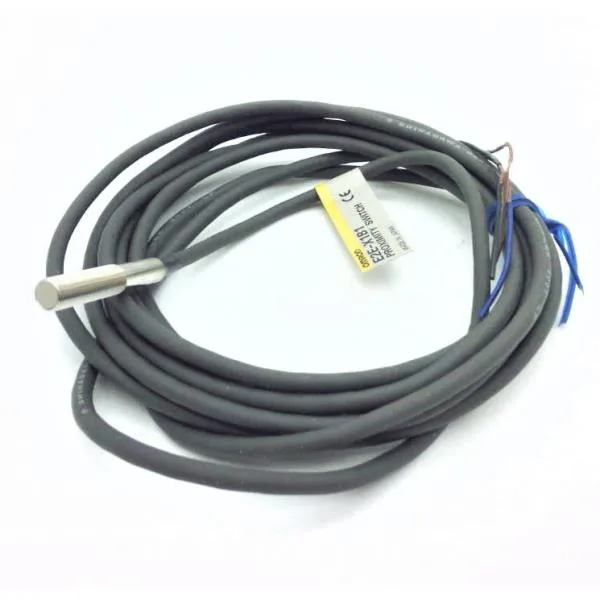

The Omron E2E-X1B1-G is a miniature cylindrical inductive proximity sensor with a 1 mm sensing distance, PNP normally open output, and a 3 kHz switching frequency. Its 5 mm diameter brass housing and pre-wired cable suit tight panel layouts on small part detection stations or end-of-travel sensing where space is at a premium. Rated for 12 … 24 VDC supply, draws 17 mA max. IP67 ingress protection and an operating range of –25 to 70°C allow installation in washdown areas or non-conditioned environments. Built-in reverse polarity protection and a surge suppressor reduce field failure risk without external clamping.
Omron E2E-X1B1-G Miniature Proximity, 1mm PNP NO
MPNE2E-X1B1-G
Omron E2E-X1B1-G, miniature cylindrical inductive proximity sensor, PNP output, normally open, 1 mm sensing distance, pre-wired, IP67.
$25.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Type | Miniature Cylindrical Proximity Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 1 mm |
Output
| Parameter | Value |
|---|---|
| Operation mode | NO |
Electrical
| Parameter | Value |
|---|---|
| Connection / connector | pre-wired |
Mechanical
| Parameter | Value |
|---|---|
| Housing material | Brass |
Product details
Frequently asked questions
What is the listed type of the E2E-X1B1-G?
It is a Miniature Cylindrical Proximity Sensor.
MPN
E2E-X1B1-G
