Omron E2E-X1C2 2M — Proximity Sensors

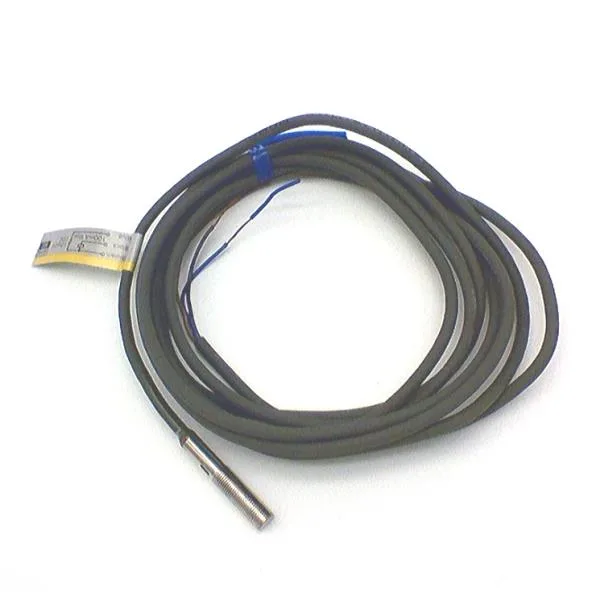

Omron E2E-X1C2 2M Proximity Sensor, Shielded, 1 mm, NPN NC

MPNE2E-X1C2 2M

Omron E2E-X1C2 2M, Shielded DC 3-wire Proximity Sensor, 1 mm sensing distance, NPN normally closed output, 2 m PVC cable.

$95.10Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E-X1C2 2M — Sensing
ParameterValue
Sensing distance1 mm sensing distance
ShieldingShielded
E2E-X1C2 2M — Output
ParameterValue
Switching outputNormally closed
E2E-X1C2 2M — Mechanical
ParameterValue
Cable length2 meter cable
E2E-X1C2 2M — Other specifications
ParameterValue
Weight0.06 kgs
Cable specsPVC cable
Self-DiagnosisNo self-diagnosis
Oscillation frequencyStandard frequency
Power supply & outputDC 3-wire, NPN open-collector

Product details

Will it drop into another sensor's spot?

I see the E2C-X1R5AH you're looking at — that's a heat-resistance model, 1.5 mm sensing instead of 1 mm, and it ships with a 3-meter cable instead of 2. The mounting thread might be the same M8, but the different sensing distance means you'd have to re-zero your target gap; the longer cable adds slack you don't need. It's not a direct panel swap without re-terminating the wire and adjusting the bracket. Stick with the E2E-X1C2 2M if the original spec calls for 1 mm and NC output — fewer headaches out here in the grease.

MPN
E2E-X1C2 2M
