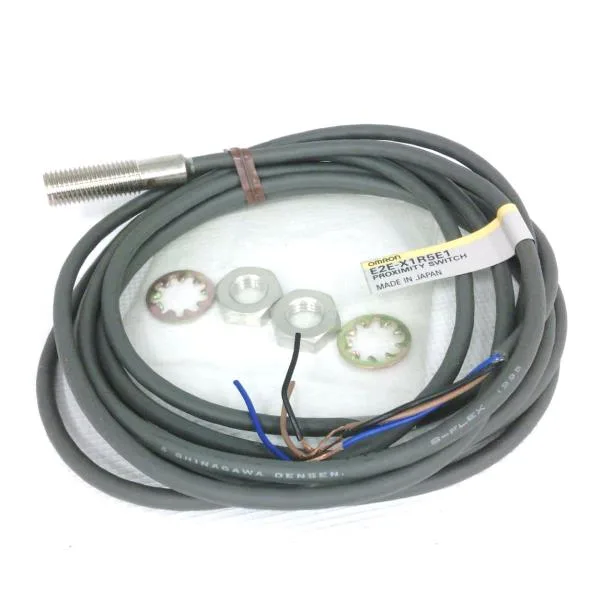

Omron E2E, Shielded Proximity Sensor, E2E-X1R5E1 2M, DC 3-wire NPN normally open, 1.5 mm sensing distance, 2 m PVC cable.
| Parameter | Value |
|---|---|
| Sensing distance | 1.5 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Weight | 0.05 kgs |
| Cable specs | PVC cable |
| Self-Diagnosis | No self-diagnosis |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, NPN collector load built-in |
The Omron E2E-X1R5E1 2M is a shielded DC 3-wire NPN proximity switch with a 1.5 mm sensing distance, normally open output, and a 2-meter PVC cable. It detects ferrous metal targets at short range, making it suitable for applications where mounting space is tight and side interference must be minimized.
No. The E2E is a self-contained DC 3-wire NPN sensor, while the E2C requires an external amplifier unit and has a different cable length (3 m vs 2 m). Rewiring and mounting changes are needed.
