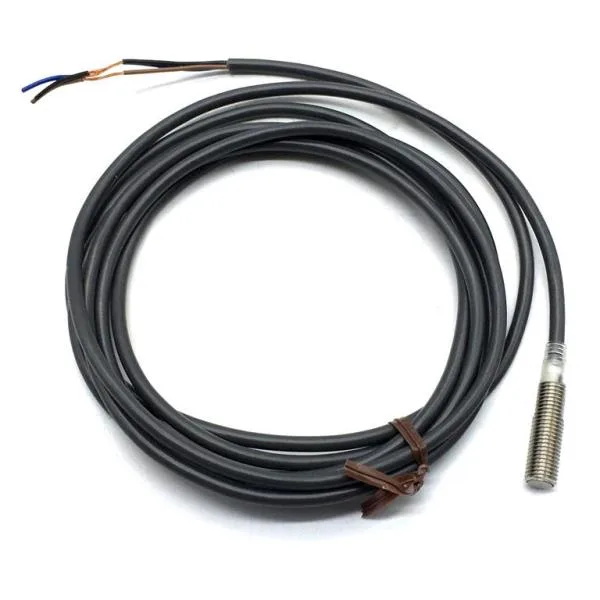

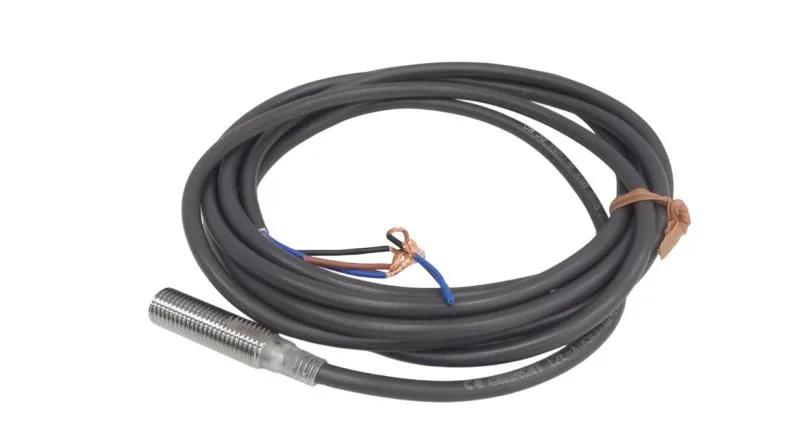

Omron E2E-X1R5F1 2M, Shielded Proximity Sensor, 1.5 mm Sensing Distance, PNP Normally Open, DC 3-Wire, 2 m Cable.
| Parameter | Value |
|---|---|
| Sensing distance | 1.5 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Weight | 0.07 kgs |
| Cable specs | PVC cable |
| Self-Diagnosis | No self-diagnosis |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, PNP collector load built-in |
The Omron E2E-X1R5F1 2M is a shielded inductive proximity sensor with a 1.5 mm sensing distance, normally open PNP output, and DC 3-wire supply. The 2-meter PVC cable makes it a fixed-wire drop for panel or machine mounting where flush installation is needed.
DC 3-wire PNP normally open: brown positive, blue negative, black switched output. Shielded construction allows flush mounting in metal.
No. The E2E is self-contained DC 3-wire PNP; the E2C connects to a separate amplifier and has a different cable length and body size. Rewiring and mechanical adaptation would be needed.
