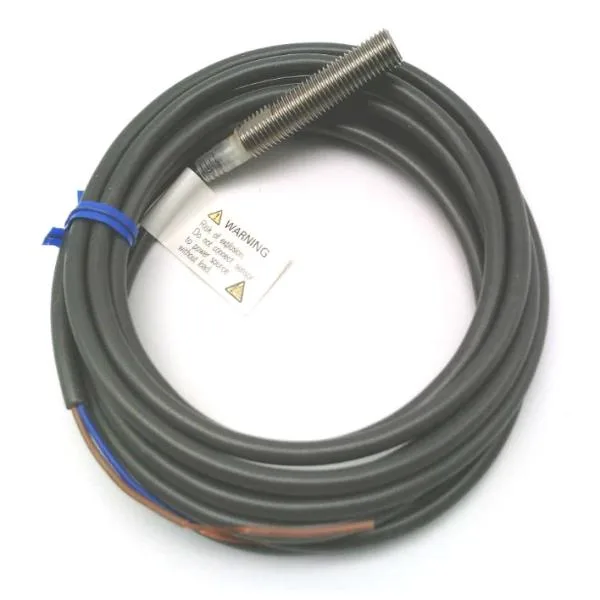

Omron E2E inductive proximity switch, model E2E-X1R5Y2 2M, shielded, 1.5 mm sensing distance, normally closed output, AC 2-wire with 2-meter PVC cable.
| Parameter | Value |
|---|---|
| Sensing distance | 1.5 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Switching output | Normally closed |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
| Cable specs | PVC cable |
| Self-Diagnosis | No self-diagnosis |
| Oscillation frequency | Standard frequency |
| Power supply & output | AC 2-wire |
The Omron E2E-X1R5Y2 2M is a shielded inductive proximity switch with a 1.5 mm sensing distance, normally closed output, and AC 2-wire supply. It comes with a 2-meter PVC cable and operates at standard oscillation frequency. Shielded construction permits flush mounting in metal, and the AC two-wire interface simplifies wiring in control circuits where DC is unavailable. No self-diagnosis function is included; fault detection relies on external monitoring.
No. The E2C-X1R5AH is a heat-resistance model with a separate amplifier unit, different mounting (M8 threaded head), and 3-meter cable. It is not a direct interchange.
