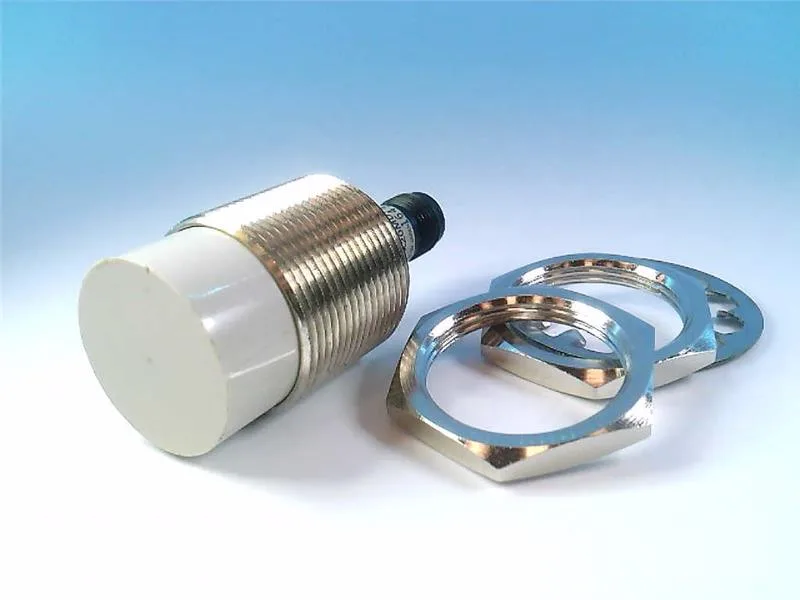

The Omron E2E-X20MC2L18-M1TJR 0.3M is an inductive proximity sensor from the E2E NEXT series, housed in an M18 threaded nickel-plated brass cylinder. It provides a 20mm sensing distance — unshielded, so the mounting clearance in ferrous materials must be planned for the full detection zone. Output is NPN normally-closed (3-wire), which on a line break or power loss falls to a safe-off state — a trait that supports failure-mode analysis for safety-instrumented functions.
Sensing characteristics
Supply range is 10-30 VDC, response frequency is 200 Hz. LED indicator and cable with connector aid commissioning. Ingress protection is dual-rated IP67 and IP69K, so this sensor qualifies for washdown zones and high-pressure cleaning cycles — relevant for pharmaceutical and food-grade environments where validated cleaning protocols require a documented IP rating.
