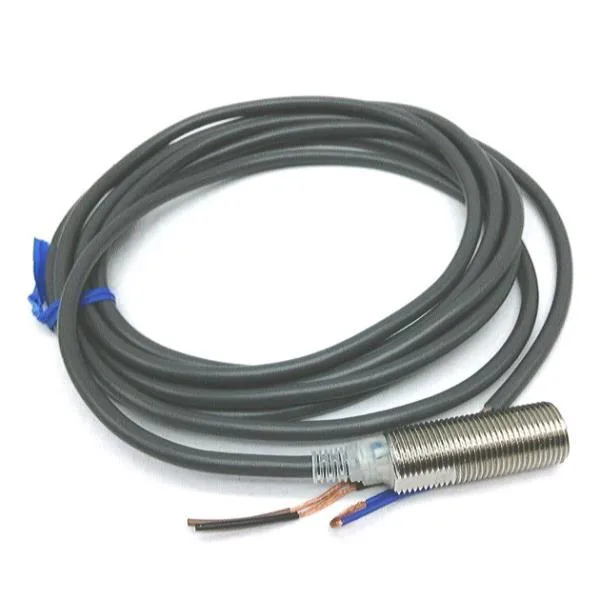

The Omron E2E-X2E15 2M is a shielded inductive proximity switch from the E2E series, delivering a 2 mm sensing distance on ferrous targets. It uses a DC 3-wire NPN configuration with a normally open switching output, and is pre-wired with 2 meters of PVC cable. This is a standard industrial sensor for position detection in machinery, conveyors, and automation cells where a short-range shielded mount is needed. Rated for an alternate oscillation frequency (carrier frequency not specified in the base listing), the sensor includes no self-diagnostic output. The shielded housing concentrates the field at the face, allowing flush mounting without derating the sensing range.
E2E-X2E15 2M Omron Shielded Proximity Switch, 2mm, NPN NO
MPNE2E-X2E15 2M
Omron E2E series, shielded inductive proximity switch, order code E2E-X2E15 2M, 2 mm sensing distance, NPN normally open, 2-meter PVC cable, DC 3-wire.
$144.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 2 mm sensing distance |
| Shielding | Shielded |
Output
| Parameter | Value |
|---|---|
| Switching output | Normally open |
Mechanical
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.00 kgs |
| Cable specs | PVC cable |
| Self-Diagnosis | No self-diagnosis |
| Oscillation frequency | Alternate frequency |
| Power supply & output | DC 3-wire, NPN collector load built-in |
Product details
Frequently asked questions
What is the closest functional second-source for the E2E-X2E15 2M?
The listed peer E2C-X1R5AH is not a functional second-source — it is a different E2C series requiring a separate amplifier, with 1.5 mm range and M8 housing. A true direct replacement would be another E2E series shielded sensor with the same 2 mm sensing distance and NPN output.
MPN
E2E-X2E15 2M
