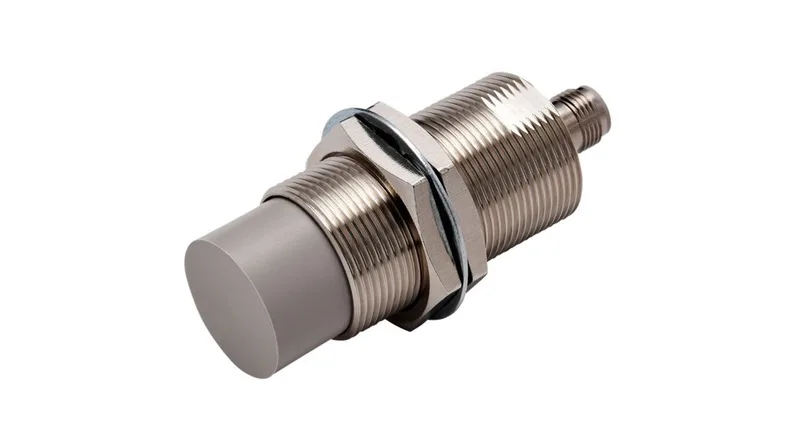

The Omron E2E-X30MB1DL18 2M from the E2E NEXT series is an M18 threaded cylinder inductive sensor with a 30 mm (1.181") unshielded sensing distance, PNP-NO output, and 3-wire cable termination. Its IP67/IP69K rating means it withstands high-pressure washdown, making it suitable for hygiene-sensitive zones. Response frequency is 200 Hz, and supply range is 10-30 VDC.
Mounting uses standard M18 threaded hole with two lock nuts. Unshielded design allows flush or non-flush mounting but requires derating if embedded in metal. Cable leads are 2 m; terminate into a PNP input card. The nickel-plated brass body provides chemical resistance for washdown environments.
