The Omron E2E-X3D2-M1G is a shielded DC 2-wire proximity switch with a 3 mm sensing distance and normally closed output. The 3 mm range is the actual detection gap at the face; shielded construction lets you mount it flush in steel without derating. It connects via an M12 connector (IEC arrangement), which saves panel wiring time compared to pigtail models – just plug in a standard M12 cordset. The DC 2-wire output simplifies the circuit: one wire for power, one for signal, and it works with both PNP and NPN inputs on the PLC side (the sensor self-polars).

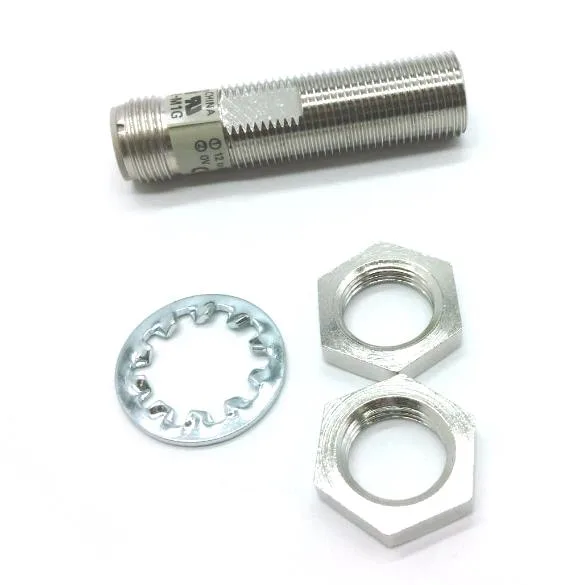

Omron E2E-X3D2-M1G Proximity Switch, Shielded, NC, 3 mm
MPNE2E-X3D2-M1G
Omron E2E-X3D2-M1G, E2E/E2E NEXT series, shielded DC 2-wire proximity switch, normally closed, 3 mm sensing range, M12 connector.
$70.87Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 3 mm range |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
| Parameter | Value |
|---|---|
| Weight | 0.00 kgs |
| Polarity | Polarity |
| Body length | Standard length |
| Connection method | M12 connector (IEC arrangement) |
| Output configuration | DC 2-wire |
| Oscillation frequency | Standard freq. |
Product details
MPN
E2E-X3D2-M1G
