The Omron E2E-X4MD1-M1G is an inductive proximity switch from the E2E/E2E NEXT series, built for metal-target detection in industrial automation. Unshielded construction means the sensing field extends beyond the sensor body — install it with a non-flush mount to avoid detection errors. The 4 mm sensing range covers standard part-present and position-checking applications on conveyor lines, transfer stations, and machine tools. Output is DC 2-wire, normally open. Two-wire sensors simplify cabling but carry a voltage drop across the load — factor that into your PLC input card's ON-state threshold. The M12 connector (IEC arrangement) mates with standard cordsets, no wire stripping needed at installation.

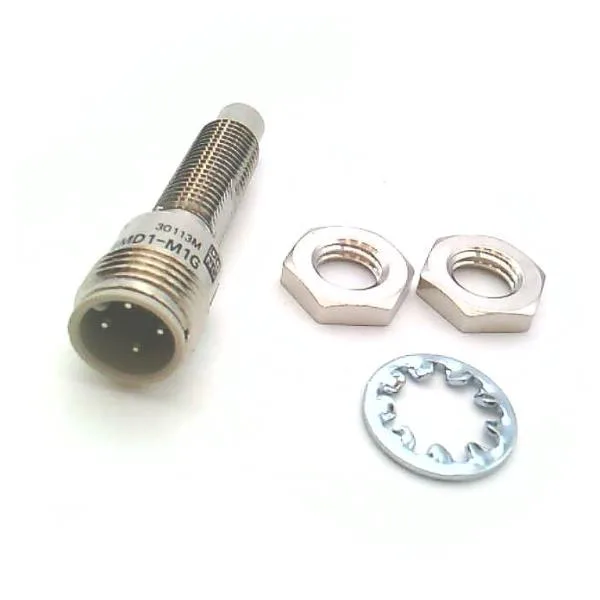

Omron E2E-X4MD1-M1G Proximity Sensor, 4mm, Unshielded, M12
MPNE2E-X4MD1-M1G
Omron E2E/E2E NEXT series inductive proximity switch, E2E-X4MD1-M1G, unshielded, 4 mm range, DC 2-wire normally open, M12 connector (IEC arrangement).
$69.22Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 4 mm range |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Weight | 0.00 kgs |
| Polarity | Polarity |
| Body length | Standard length |
| Connection method | M12 connector (IEC arrangement) |
| Output configuration | DC 2-wire |
| Oscillation frequency | Standard freq. |
Product details
Frequently asked questions
What does unshielded mean for installation?
Unshielded means the sensing field projects beyond the sensor body. You must mount the sensor non-flush (with clearance around the head) to prevent false triggers from the mounting material.
MPN
E2E-X4MD1-M1G
