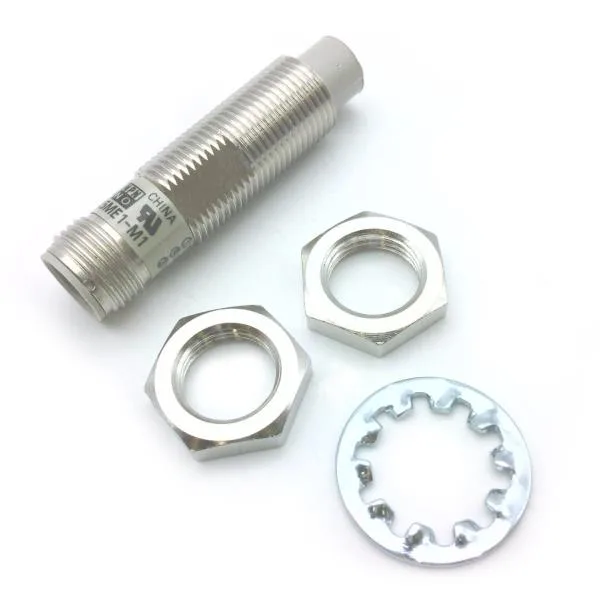

Omron E2E-X5ME1-M1 inductive proximity sensor, M12, 5 mm unshielded, NPN no, DC 3-wire.
| Parameter | Value |
|---|---|
| Sensing distance | 5 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Weight | 0.05 kgs |
| Self-Diagnosis | No self-diagnosis |
| Connection method | M12 connector |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, NPN collector load built-in |
The E2E-X5ME1-M1 is a standard inductive proximity sensor with 5 mm sensing distance, NPN normally open output, M12 connector, DC 3-wire supply, unshielded.
The NPN output pulls low when a target is within 5 mm; wire the load between supply positive and the collector. The sensor has an M12 connector and a DC 3-wire supply.
It has an NPN normally open output on a DC 3-wire configuration. The load is connected between the supply positive and the output transistor.
The sensing distance is 5 mm (unshielded). Connection is via an M12 male connector, which simplifies replacement without opening the sensor gland.
