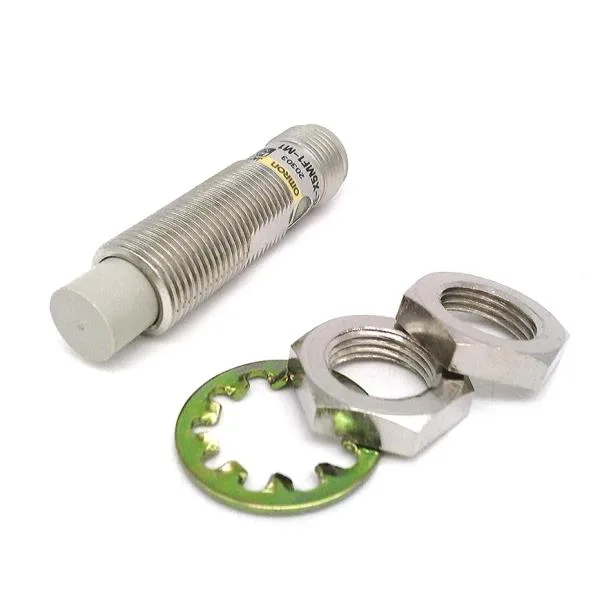

The E2E-X5MF1-M1 is an inductive proximity sensor delivering a 5 mm sensing distance. It uses a DC 3-wire PNP normally open output that switches when a metal target enters the detection zone. The unshielded design means you need gap around the sensor face — typically twice the sensing distance — but you get a longer range than a shielded equivalent. Connection is through a standard M12 connector, so panel wiring is quick and consistent with other sensors in this footprint.
E2E-X5MF1-M1 Proximity Sensor, PNP NO, 5mm, M12
MPNE2E-X5MF1-M1
Omron E2E-X5MF1-M1 inductive proximity sensor: DC 3-wire, PNP normally open output, unshielded, 5 mm sensing distance, M12 connector, standard frequency.
$190.94Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 5 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Weight | 0.09 kgs |
| Self-Diagnosis | No self-diagnosis |
| Connection method | M12 connector |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, PNP collector load built-in |
Product details
MPN
E2E-X5MF1-M1
