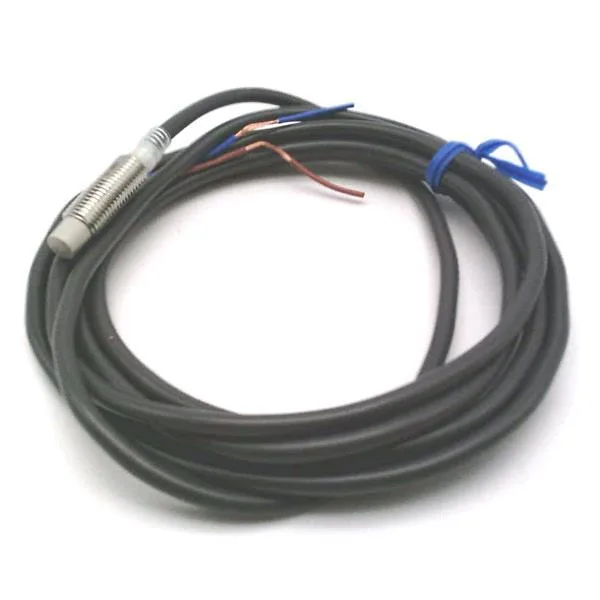

OMRON E2E-X5MF2 2M is an inductive proximity switch in the E2E series, unshielded, with a 5 mm sensing distance and standard oscillation frequency. Output is PNP normally closed via DC 3-wire; no self-diagnosis. Terminated with 2 m PVC cable. Rated for standard metal target detection in industrial automation – sensor head mounts flush or non-flush; unshielded design allows a longer sensing range than shielded equivalents for the same housing size.
OMRON E2E-X5MF2 2M Inductive Proximity Sensor, 5mm PNP NC
MPNE2E-X5MF2 2M
OMRON E2E Series, Inductive Proximity Switch, E2E-X5MF2 2M, 5 mm sensing distance, unshielded, PNP normally closed output, DC 3-wire, 2 m PVC cable.
$124.49Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 5 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Switching output | Normally closed |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
| Cable specs | PVC cable |
| Self-Diagnosis | No self-diagnosis |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, PNP collector load built-in |
Product details
Frequently asked questions
Will the E2E-X5MF2 2M drop into a panel specified around the E2KQ-X10ME1 without rewiring?
No – the E2KQ-X10ME1 is a capacitive sensor with NPN normally open output, while the E2E-X5MF2 2M is inductive with PNP normally closed. They are not drop-in substitutes; wiring and logic would need to change.
What are the key ratings of the E2E-X5MF2 2M?
5 mm sensing distance, unshielded, PNP normally closed output, DC 3-wire, 2 m PVC cable, standard oscillation frequency.
MPN
E2E-X5MF2 2M
