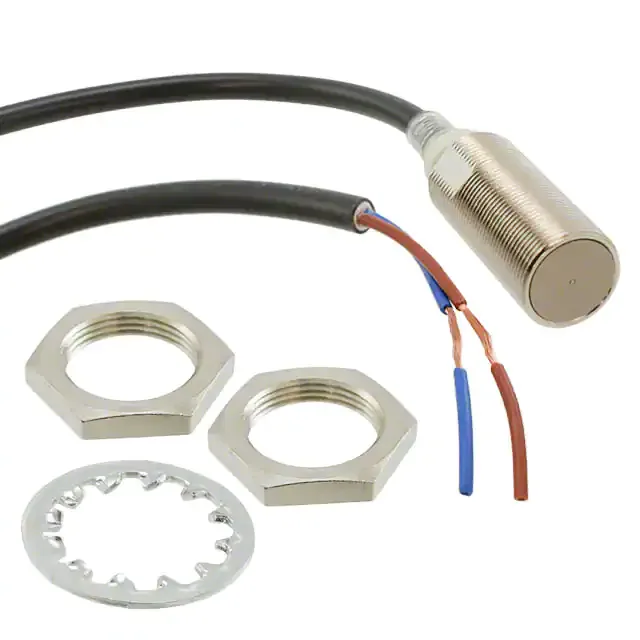

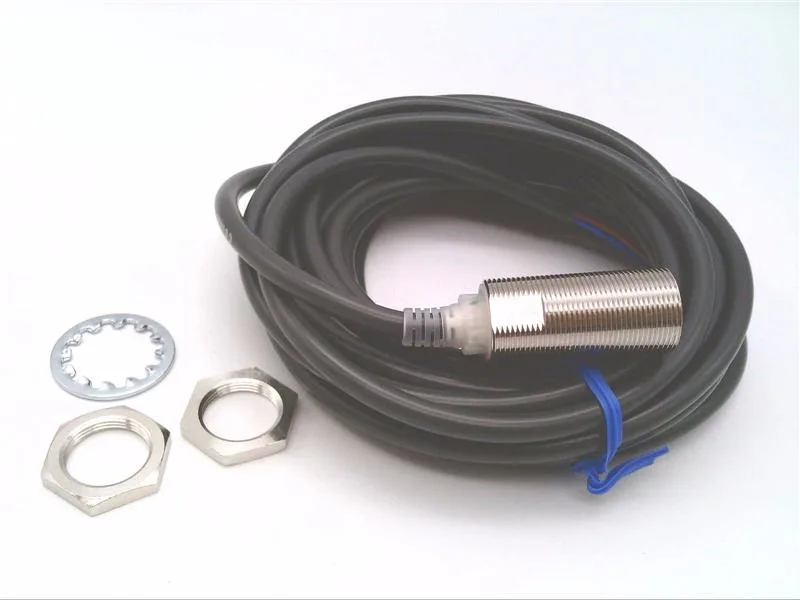

The Omron E2E-X5Y1 5M is a shielded M18 cylindrical inductive proximity sensor, AC 2-wire normally-open output, rated for 24 to 240 VAC (operating range 20 to 264 VAC). It detects ferrous metal at 5 mm ±10%, with a recommended setting distance of 0 to 4 mm. The pre-wired 2 m cable and IP67 / oil‑proof enclosure make it a direct drop for panels that require flush mounting in metal and resistance to cutting fluids or washdown.
The nearest functional sibling is the E2E-X5MY1 2M (also AC 2‑wire, NO, 5 mm sensing). The critical difference: the X5Y1 is shielded (M18 head), while the X5MY1 is unshielded (M12 head). Shielded permits flush mounting in metal without derating the sensing distance; unshielded requires a non‑metal zone around the head. Also, the X5Y1 switches 5–300 mA, the X5MY1 only 5–200 mA. If your BOM uses an M18 threaded hole and needs flush mounting, the X5Y1 is the correct fit — the X5MY1 requires a 12 mm hole and non‑flush conditions.
Listed as current production — no end‑of‑life notice. Sourced to order; send an RFQ with your volume and delivery window for a firm lead time.
