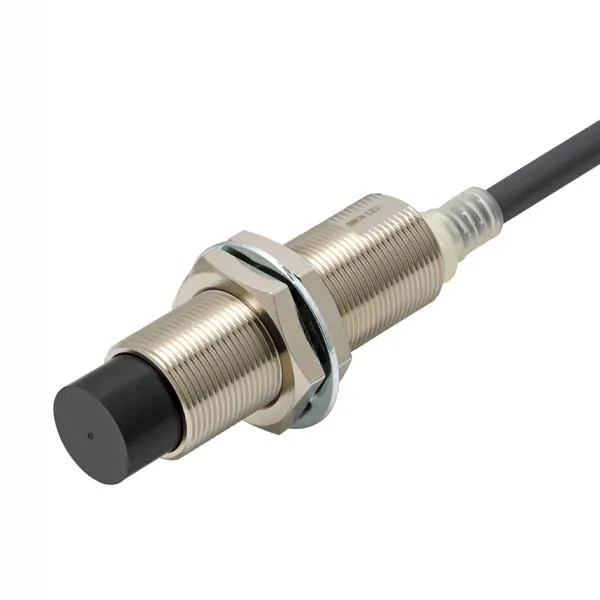

Omron E2E2-X10MY1-US 2M is a UL-certified inductive proximity switch with 10 mm sensing distance, AC 2-wire normally open output, and 2 meter cable. Unshielded construction allows flush mounting without derating.
Omron E2E2-X10MY1-US 2M Inductive Prox, AC 2-Wire, 10mm
MPNE2E2-X10MY1-US 2M
Omron E2E2 long-barrel inductive proximity switch, UL cert, 10 mm sensing, AC 2-wire NO, 2 m cable.
$59.69Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 10 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter length |
| Parameter | Value |
|---|---|
| Model | UL cert |
| Weight | 0.00 kgs |
| Output specifications | AC 2-wire |
Product details
Frequently asked questions
What is the closest alternative if the E2E2-X10MY1-US 2M is unavailable?
The E2KQ-X10ME1 is sometimes cross-shopped, but it is a capacitive sensor with an NPN-NO 3-wire DC output, not a direct form-fit-function replacement. You would need to rewire and check the control voltage before substituting.
What does the UL certification cover?
The model is listed as UL cert, meaning it has been tested and certified by UL for the electrical ratings and construction noted on the nameplate.
What is the wiring configuration?
It is an AC 2-wire normally open device. The two wires connect in series with the load on an AC supply. No separate power or ground wire needed.
MPN
E2E2-X10MY1-US 2M
