Omron E2E2-X14MD1 2M — Proximity Sensors

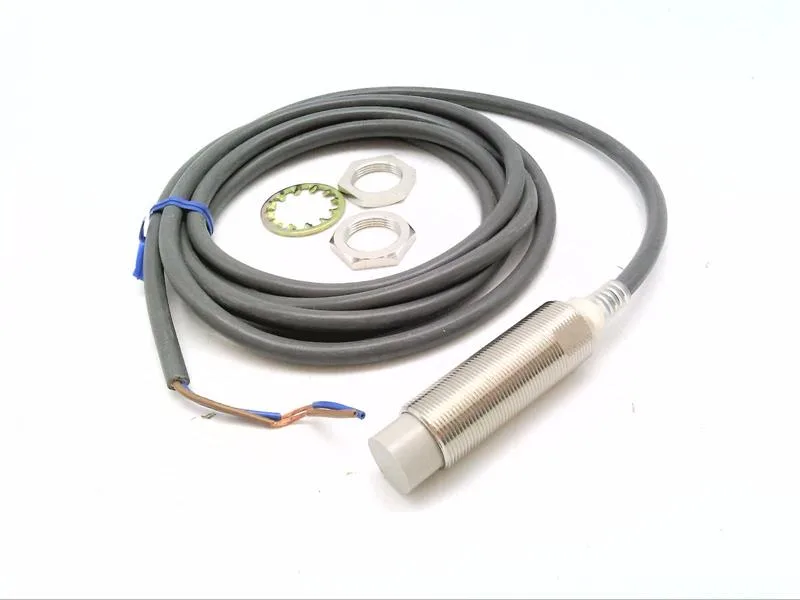

Omron E2E2-X14MD1 2M Inductive Prox, 14mm

MPNE2E2-X14MD1 2M

Omron, E2E2-X14MD1 2M, inductive proximity sensor, unshielded, 14 mm sensing distance, DC 2-wire normally open, 2 m cable.

$173.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2E2-X14MD1 2M — Sensing
ParameterValue
Sensing distance14 mm sensing distance
ShieldingUnshielded
E2E2-X14MD1 2M — Output
ParameterValue
Operation modeNormally open
E2E2-X14MD1 2M — Mechanical
ParameterValue
Cable length2 meter length
E2E2-X14MD1 2M — Other specifications
ParameterValue
Weight0.45 kgs
Output specificationsDC 2-wire

Product details

The Omron E2E2-X14MD1 2M is an inductive proximity sensor with a 14 mm sensing distance (unshielded) and a DC 2-wire normally open output on a 2-meter cable. Unshielded means it needs a non-metallic free zone around the face — can't be flush-mounted into a steel block. The DC 2-wire output is simple to wire (two wires carrying both power and signal) but carries a voltage drop across the sensor; check that your load can tolerate the dark current and minimum hold current.

MPN
E2E2-X14MD1 2M
