The Omron E2E2-X18MB1 2M is an 18 mm unshielded proximity sensor with a DC 3-wire PNP normally open output and a 2-meter cable. It's a current-production item, so that's one SKU I don't have to worry about disappearing off the line. The unshielded body means it needs a non-flush mounting gap—factor that into your bracket layout. This sensor fits standard 18mm barrel mounting and works with PLC digital inputs rated for PNP sourcing. Keep the cable away from high-voltage runs to avoid coupled noise.

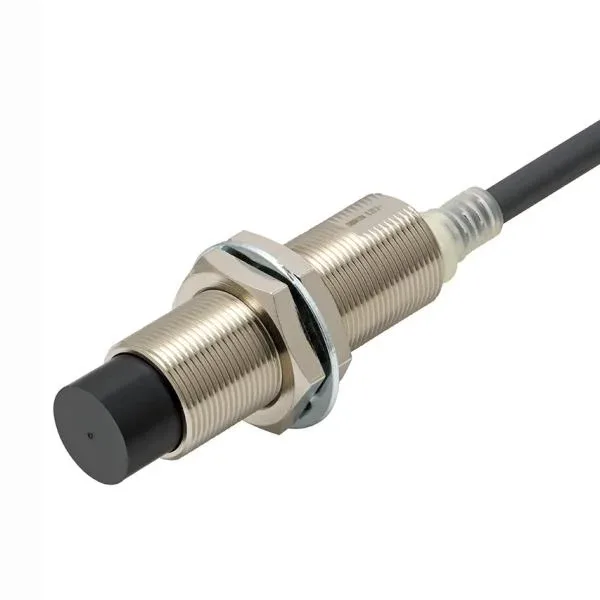

Omron E2E2-X18MB1 2M Proximity Sensor, 18mm, PNP NO
MPNE2E2-X18MB1 2M
Omron, E2E2 series proximity sensor, E2E2-X18MB1 2M, unshielded 18 mm sensing, PNP normally open, 2 m cable.
$102.84Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 18 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter length |
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
| Output specifications | DC 3-wire, PNP open collector |
Product details
MPN
E2E2-X18MB1 2M
