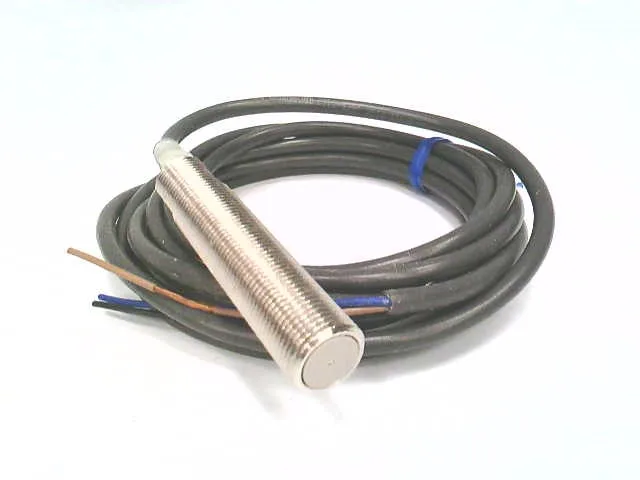

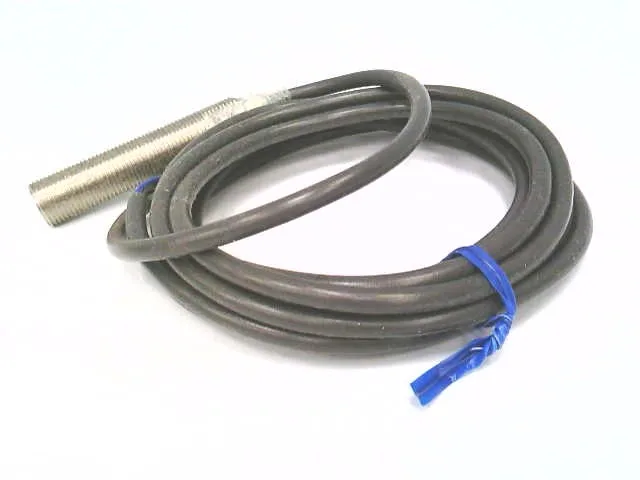

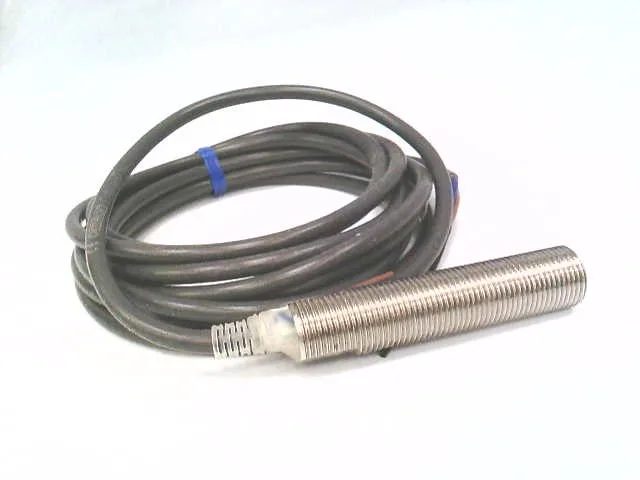

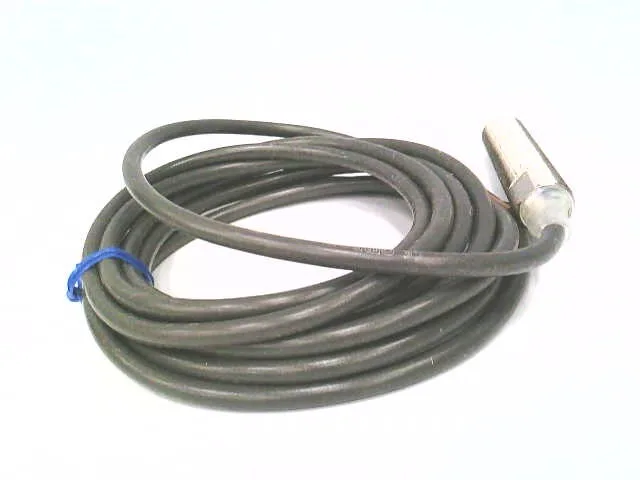

Omron E2E2 series, Shielded Proximity Sensor, DC 3-wire PNP, Normally Open, 2 mm sensing distance, 2 m cable, current production.
| Parameter | Value |
|---|---|
| Sensing distance | 2 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter length |
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
| Output specifications | DC 3-wire, PNP open collector |
The E2E2-X2B1 2M: Shielded construction allows flush mounting in metal. The PNP normally-open output switches a positive signal when the target enters the 2 mm sensing field.
DC 3-wire PNP: brown to +V, blue to 0V, black switched output. The 2 m cable is pre-wired; no connector to source separately.
No — the E2C-X1R5AH is a sensor head for a separate amplifier unit, not a self-contained DC 3-wire sensor. It requires a different mounting and wiring setup.
Shielded, PNP normally open, 2 mm sensing distance, 2 m cable.
