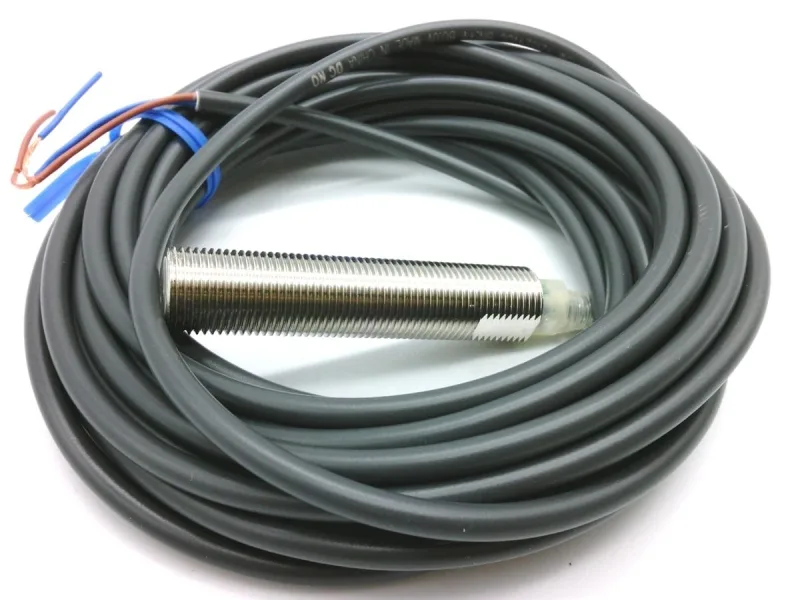

Omron E2E2-X3D1 5M, Shielded Proximity Sensor, DC 2-Wire NO, 3 mm Range, 5 m Cable.
| Parameter | Value |
|---|---|
| Sensing distance | 3 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 5 meter length |
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
| Output specifications | DC 2-wire |
If you're cross-referencing from an E2E2-X5B1-M1, stop. That part runs a DC 3-wire PNP output with an M12 connector and 5 mm range. The E2E2-X3D1 5M is 2-wire NO, not PNP — different load wiring, different sensing distance. No drop-in without rewiring the output side and confirming the new 3 mm gap tolerance.
Lifecycle stage is current — Omron still manufactures this part.
No. The E2E2-X5B1-M1 is a DC 3-wire PNP output with a 5 mm sensing distance and an M12 connector. The E2E2-X3D1 5M is a 2-wire normally open sensor with a 3 mm range and a 5-meter cable — different output wiring and sensing performance.
Shielded, 3 mm sensing distance, DC 2-wire normally open output.
