The E2E2-X5Y2-US 2M is a shielded inductive proximity switch from Omron's E2E2 long-barrel family. Normally closed (NC) operation means the output opens when a target is present — a failsafe choice if power loss needs to signal a stopped state. The AC 2-wire output simplifies wiring: two wires for both power and load, no separate DC supply needed. Shielded construction lets you mount it flush in metal without derating the sensing range. Sensing distance is 5 mm. Cable length is 2 meters. UL-certified model.

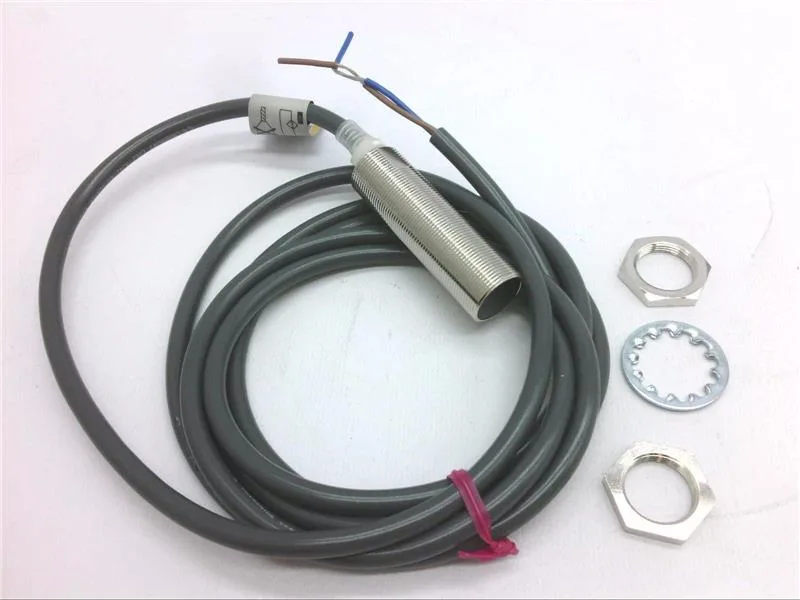

Omron E2E2-X5Y2-US 2M Shielded Prox, NC, AC 2-wire, 5mm
MPNE2E2-X5Y2-US 2M
Omron E2E2-X5Y2-US 2M shielded proximity switch, normally closed, AC 2-wire output, 5 mm sensing distance, 2 meter cable.
$59.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 5 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally closed |
| Parameter | Value |
|---|---|
| Cable length | 2 meter length |
| Parameter | Value |
|---|---|
| Model | UL cert |
| Weight | 0.00 kgs |
| Output specifications | AC 2-wire |
Product details
MPN
E2E2-X5Y2-US 2M
