Omron E2E2X10MY12MOMS — Proximity Sensors

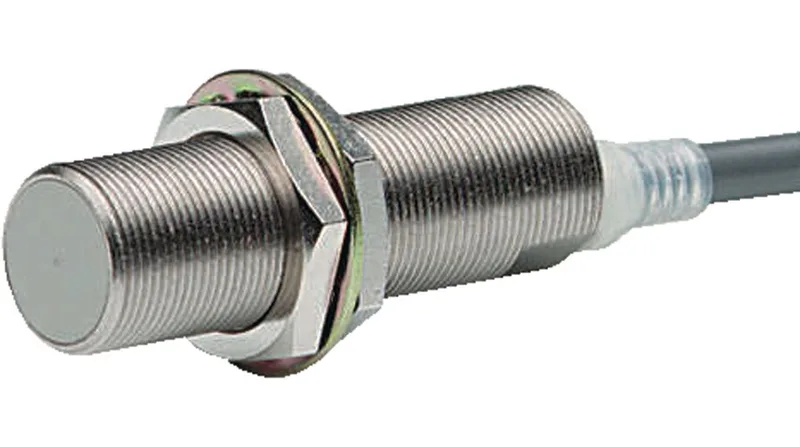

Omron E2E2X10MY12MOMS Inductive Sensor, M18, 10mm, NO

MPNE2E2X10MY12MOMS

Omron E2E2 Series, E2E2X10MY12MOMS, Inductive Proximity Sensor, Make Contact (NO), 10 mm, M18, Pre-Wired, IP67, Brass Housing.

Omron E2E2X10MY12MOMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2E2X10MY12MOMS — Identification
ParameterValue
SeriesE2E2
E2E2X10MY12MOMS — Sensing
ParameterValue
Sensing distance, max.10 mm
E2E2X10MY12MOMS — Electrical
ParameterValue
Operating voltage, max.240 V
Operating voltage, min.24 V
Termination typePre-Wired
E2E2X10MY12MOMS — Output
ParameterValue
Switching frequency25 Hz
Load current300 mA
E2E2X10MY12MOMS — Mechanical
ParameterValue
Mounting typeThrough Hole
Length60 mm
Housing materialBrass
E2E2X10MY12MOMS — Environmental
ParameterValue
Operating temperature, max.85 °C
Operating temperature, min.-40 °C
IP protection ratingIP67
E2E2X10MY12MOMS — Other specifications
ParameterValue
Construction formM18
Inductive sensor output typeMake Contact (NO)

Product details

Omron E2E2X10MY12MOMS is an inductive proximity sensor in the E2E2 series, delivering a normally-open (NO) switching output at 300 mA load capacity. The M18 barrel and 10 mm sensing distance suit applications where you need reliable metal-target detection with a bit more standoff than the compact M12 variants offer. Pre-wired with a brass housing and IP67, it handles the damp, dusty environments common on packaging lines without extra enclosure work.

Where the spec decides the fit

The 10 mm sensing distance is rated on a standard steel target. Operating voltage covers 24–240 VAC. Temperature range is –40 to 85 °C. Switching frequency is 25 Hz.

Frequently asked questions

What is the closest functional second-source?

The E2EX5MY12MOMS is the nearest match in the Omron catalog, but it uses an M12 barrel with 5 mm sensing distance instead of the M18 10 mm of this sensor. They are not drop-in interchangeable without changing the mounting arrangement.

Can this sensor replace an E2EX5MY12MOMS without rewiring?

Wiring is the same – both are normally-open (NO) two-wire sensors – but the E2E2 has a larger M18 thread and different sensing distance, so the mounting panel would need a larger hole and the target gap would increase.

What is the body length of this sensor?

The overall length is 60 mm, which is typical for an M18 barrel sensor with a pre-wired cable exit.

MPN
E2E2X10MY12MOMS
