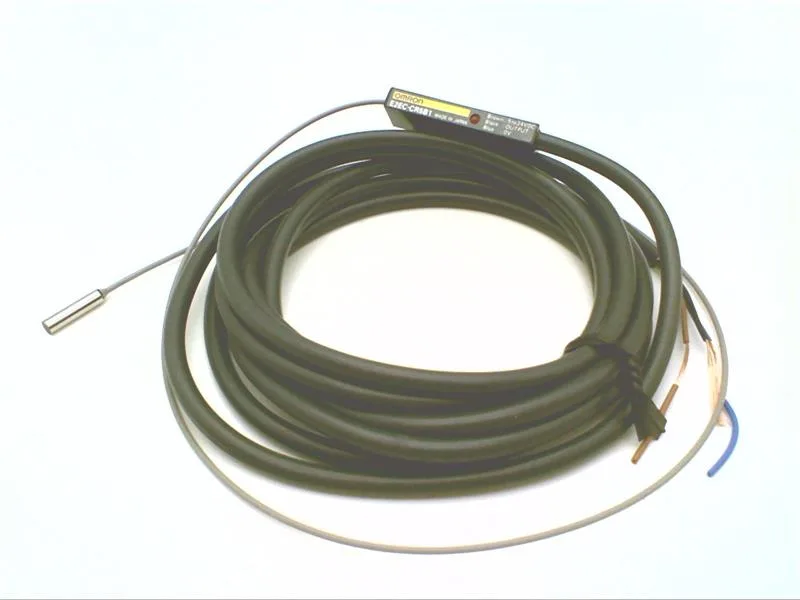

Omron E2EC-CR5B1 5M — Proximity Sensors

E2EC-CR5B1 5M Shielded Inductive Prox, 0.5mm, PNP-NO

MPNE2EC-CR5B1 5M

Sensor prox induct 0.5 mm cylinder, shielded, PNP-NO 3-wire, IP64, cable leads.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2EC-CR5B1 5M — Identification
ParameterValue
SeriesE2E
E2EC-CR5B1 5M — Sensing
ParameterValue
Sensing distance0.02" (0.5mm)
ShieldingShielded
E2EC-CR5B1 5M — Environmental
ParameterValue
Operating temperature range-25°C ~ 70°C
E2EC-CR5B1 5M — Other specifications
ParameterValue
CaseCylinder
IndicatorLED
Output signalPNP-NO, 3-Wire
Sensor typeInductive
Material - bodyNickel-Plated Brass
Supply voltage4.75V ~ 30V
Termination styleCable Leads
IP ratingIP64
Response frequency1kHz

Product details

Quick take for the route

This E2EC-CR5B1 5M is a shielded inductive prox with a 0.5 mm sensing distance — tight enough to spot a bearing race wobble on a cam follower, but you won't use it for long-range presence. PNP-NO, 3-wire, cable leads. Body is nickel-plated brass, sealed to IP64, so out here in the grease it'll handle coolant splash and dust, but don't dunk it.

0.5 mm sensing distance; shielded design allows flush mounting. Supply 4.75–30 V, response 1 kHz, operating range -25 to 70 °C.

MPN
E2EC-CR5B1 5M
