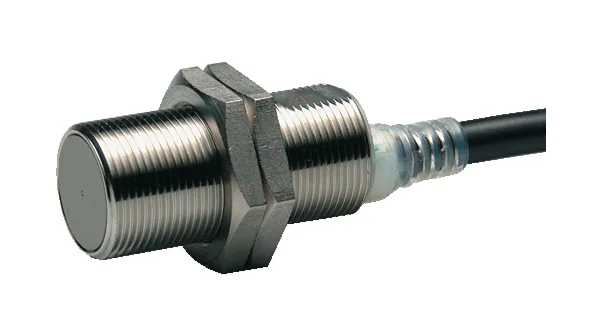

The E2EHX3B12MOMS is a stainless steel M12 inductive proximity sensor, PNP normally-open, with a 3 mm sensing distance and 500 Hz switching frequency. Its main draw is the IP69K ingress protection paired with a stainless steel barrel — a combination that holds up to hot-pressure washdowns and caustic chemicals better than the brass or plastic peers common in this form factor. Operating range spans 10–32 VDC and 0–100 °C, so it can sit on a pasteurizer tunnel or near a kiln without derating.
How it compares to nearby options
Against the E2AM12KS04M1B14OMS (brass, 4 mm sensing, 1 kHz), the trade is a shorter sensing distance and lower switching frequency for a stainless barrel that withstands caustic washdowns. The E2A lacks explicit PNP marking — only 'Make Contact' — so the E2EHX3B12MOMS is the confirmed PNP fit.
Mounting and integration notes
Through-hole mounting with supplied nuts; pre-wired cable exits the rear; overall length 52 mm. IP69K requires clean sensing face and proper cable gland torque; 500 Hz switching suits high-speed counting or cam position detection.
