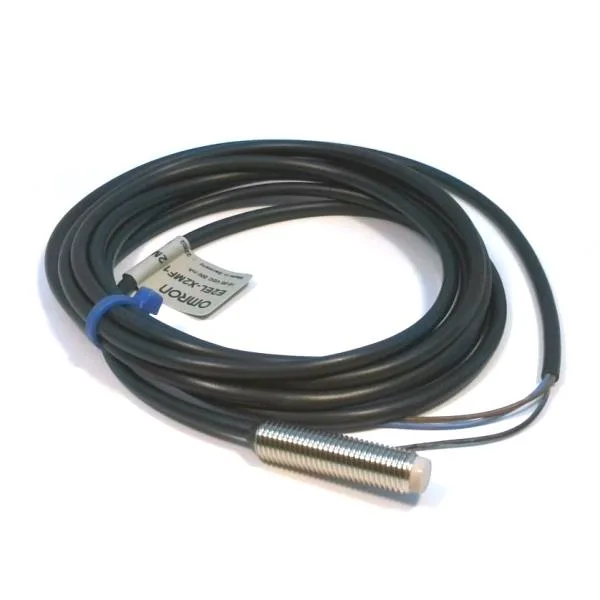

The Omron E2EL-X2MF1 2M is an M-threaded barrel inductive proximity sensor with a 2 mm sensing distance, PNP normally open output, unshielded design, and a pre-wired 2 m cable. Rated for standard environments; the unshielded construction allows flush or non-flush mounting but requires a derating factor on the sensing range when used near metal.
Omron E2EL-X2MF1 2M Proximity Sensor, PNP NO, 2 mm, Unshield
MPNE2EL-X2MF1 2M
Omron E2EL-X2MF1 2M, proximity sensor, threaded barrel, unshielded, 2 mm sensing distance, PNP normally open output, 2 m cable.
$133.11Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 2 mm sensing distance |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Operation mode | Normally open |
| Parameter | Value |
|---|---|
| Cable length | 2 meter cable |
| Parameter | Value |
|---|---|
| Weight | 0.23 kgs |
| Options | Standard |
| Barrel type | Threaded barrel |
| Output specifications | PNP output |
Product details
Frequently asked questions
Will the E2EL-X2MF1 2M drop into a panel that was specified around the E2C-X1R5AH?
No. The E2EL-X2MF1 2M is an unshielded, stand-alone sensor with a different barrel form factor and a 2 m cable, while the E2C-X1R5AH is a shielded, heat-resistant head that requires an amplifier unit. Mechanical rework and different wiring would be needed.
MPN
E2EL-X2MF1 2M
